Procedure

1. In the app-config.yaml file, set the authentication environment to development:

   auth:
     environment: development

2. Restart the Developer Hub application to apply the changes.

Verification

1. Go to the login page of your Developer Hub instance.
2. Verify that the option to log in as a guest is available.

Procedure

1. In the app-config.yaml file, set the authentication environment to production:

   auth:
     environment: production

2. Restart the Developer Hub application to apply the changes.

Verification

1. Go to the login page of your Developer Hub instance.
2. Verify that the option to log in as a guest is no longer available.

Procedure

1. Register your Developer Hub app in RHBK:

   1. Use an existing realm, or create a realm, with a distinctive Name such as <my_realm>. Save the value for the next step:

      • RHBK realm base URL, such as: <your_rhbk_URL>/realms/<your_realm>.

   2. To register your Developer Hub in RHBK, in the created realm, secure the first application, with:

      1. Client ID: A distinctive client ID, such as <RHDH>.
      2. Valid redirect URIs: Set to the OIDC handler URL: https://<my_developer_hub_domain>/api/auth/oidc/handler/frame.
      3. Go to the Credentials tab and copy the Client secret.

      4. Save the values for the next step:

         • Client ID
         • Client Secret
   3. To prepare for the verification steps, in the same realm, get the credential information for an existing user or create a user. Save the user credential information for the verification steps.
2. Create a long, complex, and unique string to use as the Developer Hub session secret key.

3. Add your RHBK credentials and the session secret key to Developer Hub, by adding the following key-value pairs to your Developer Hub secrets. You can use these secrets in the Developer Hub configuration files by using their environment variable name.

   KEYCLOAK_CLIENT_ID

   Enter the saved Client ID.

   KEYCLOAK_CLIENT_SECRET

   Enter the saved Client Secret.

   KEYCLOAK_BASE_URL

   Enter the saved RHBK realm base URL.

   KEYCLOAK_REALM

   Enter the realm name to provision users.

   KEYCLOAK_LOGIN_REALM

   Enter the realm name to authenticate users.

   SESSION_SECRET

   Enter the created session secret key.

4. Enable the Keycloak catalog provider plugin in your dynamic-plugins.yaml file.

   The plugin is named after RHBK upstream project.

   This plugin imports RHBK users and groups to the Developer Hub software catalog.

   plugins:
     - package: './dynamic-plugins/dist/backstage-community-plugin-catalog-backend-module-keycloak-dynamic'
       disabled: false

5. The OIDC provider authentication backend plugin requires Developer Hub to support sessions. Enable session support by adding the session secret to your app-config.yaml file:

   auth:
     session:
       secret: ${SESSION_SECRET}

6. Enable provisioning RHBK users and groups to the Developer Hub software catalog, by adding the catalog.providers.keycloakOrg section to your app-config.yaml file:

   catalog:
     providers:
       keycloakOrg:
         default:
           baseUrl: ${KEYCLOAK_BASE_URL}
           clientId: ${KEYCLOAK_CLIENT_ID}
           clientSecret: ${KEYCLOAK_CLIENT_SECRET}
           realm: ${KEYCLOAK_REALM}
           loginRealm: ${KEYCLOAK_LOGIN_REALM}

   baseUrl

   Enter your RHBK server URL, defined earlier.

   clientId

   Enter your Developer Hub application client ID in RHBK, defined earlier.

   clientSecret

   Enter your Developer Hub application client secret in RHBK, defined earlier.

   realm

   Enter the realm name to provision users.

   loginRealm

   Enter the realm name to authenticate users.

7. Optional: Add optional fields to the keycloackOrg catalog provider section in your app-config.yaml file:

   catalog:
     providers:
       keycloakOrg:
         default:
           baseUrl: ${KEYCLOAK_BASE_URL}
           clientId: ${KEYCLOAK_CLIENT_ID}
           clientSecret: ${KEYCLOAK_CLIENT_SECRET}
           realm: ${KEYCLOAK_REALM}
           loginRealm: ${KEYCLOAK_LOGIN_REALM}
           userQuerySize: 100
           groupQuerySize: 100
           schedule:
             frequency: { hours: 1 }
             timeout: { minutes: 50 }
             initialDelay: { seconds: 15}

   userQuerySize

   Enter the user count to query simultaneously. Default value: 100.

   groupQuerySize

   Enter the group count to query simultaneously. Default value: 100.

   schedule

   frequency

   Enter the schedule frequency. Supports cron, ISO duration, and "human duration" as used in code.

   timeout

   Enter the timeout for the user provisioning job. Supports ISO duration and "human duration" as used in code.

   initialDelay

   Enter the initial delay to wait for before starting the user provisioning job. Supports ISO duration and "human duration" as used in code.

8. Enable the RHBK authentication provider, by adding the OIDC provider section in your app-config.yaml file:

   auth:
     environment: production
     providers:
       oidc:
         production:
           metadataUrl: ${KEYCLOAK_BASE_URL}
           clientId: ${KEYCLOAK_CLIENT_ID}
           clientSecret: ${KEYCLOAK_CLIENT_SECRET}
           prompt: auto
   signInPage: oidc

   environment: production

   Mark the environment as production to hide the Guest login in the Developer Hub home page.

   metadataUrl, clientId, clientSecret

   Configure the OIDC provider with your secrets.

   prompt

   Enter auto to allow the identity provider to automatically determine whether to prompt for credentials or bypass the login redirect if an active RHBK session exists.

   The identity provider defaults to none, which assumes that you are already logged in. Sign-in requests without an active session are rejected.

   signInPage

   Enter oidc to enable the OIDC provider as default sign-in provider.

9. Optional: Add optional fields to the OIDC authentication provider section in your app-config.yaml file:

   auth:
     providers:
       oidc:
         production:
           metadataUrl: ${KEYCLOAK_BASE_URL}
           clientId: ${KEYCLOAK_CLIENT_ID}
           clientSecret: ${KEYCLOAK_CLIENT_SECRET}
           callbackUrl: ${KEYCLOAK_CALLBACK_URL}
           tokenEndpointAuthMethod: ${KEYCLOAK_TOKEN_ENDPOINT_METHOD}
           tokenSignedResponseAlg: ${KEYCLOAK_SIGNED_RESPONSE_ALG}
           additionalScopes: ${KEYCLOAK_SCOPE}
           signIn:
             resolvers:
               - resolver: oidcSubClaimMatchingKeycloakUserId
               - resolver: preferredUsernameMatchingUserEntityName
               - resolver: emailMatchingUserEntityProfileEmail
               - resolver: emailLocalPartMatchingUserEntityName
                 dangerouslyAllowSignInWithoutUserInCatalog: true
           sessionDuration: { hours: 24 }
     backstageTokenExpiration: { minutes: _<user_defined_value>_ }
   signInPage: oidc

   callbackUrl

   RHBK callback URL.

   tokenEndpointAuthMethod

   Enter your token endpoint authentication method.

   tokenSignedResponseAlg

   Token signed response algorithm.

   additionalScopes

   Enter additional RHBK scopes to request for during the authentication flow.

   signIn

   resolvers

   After successful authentication, the user signing in must be resolved to an existing user in the Developer Hub catalog. To best match users securely for your use case, consider configuring a specific resolver.

   Enter the resolver list to override the default resolver: oidcSubClaimMatchingKeycloakUserId.

   Available values:

   oidcSubClaimMatchingKeycloakUserId

   Matches the user with the immutable sub parameter from OIDC to the RHBK user ID. Consider using this resolver for enhanced security.

   emailLocalPartMatchingUserEntityName

   Matches the email local part with the user entity name.

   emailMatchingUserEntityProfileEmail

   Matches the email with the user entity profile email.

   preferredUsernameMatchingUserEntityName

   Matches the preferred username with the user entity name.

   The authentication provider tries each sign-in resolver in order until it succeeds, and fails if none succeed.

   Warning

   In production mode, configure only one resolver to make sure users are securely matched.

   dangerouslyAllowSignInWithoutUserInCatalog: true

   Configure the sign-in resolver to bypass the user provisioning requirement in the Developer Hub software catalog.

   Warning

   In production mode, do not enable the dangerouslyAllowSignInWithoutUserInCatalog option.

   sessionDuration

   Lifespan of the user session. Enter a duration in ms library format (such as '24h', '2 days'), ISO duration, or "human duration" as used in code.

   backstageTokenExpiration

   Enter a value to modify the Developer Hub token expiration from its default value of one hour. It refers to the validity of short-term cryptographic tokens, not to the session duration. The expiration value must be set between 10 minutes and 24 hours.

   Warning

   If multiple valid refresh tokens are issued due to frequent refresh token requests, older tokens will remain valid until they expire. Enhance security and prevent potential misuse of older tokens by enabling a refresh token rotation strategy in your RHBK realm.

   1. From the Configure section of the navigation menu, click Realm Settings.
   2. From the Realm Settings page, click the Tokens tab.
   3. From the Refresh tokens section of the Tokens tab, toggle the Revoke Refresh Token to the Enabled position.

10. To disable the guest login option, in the app-config.yaml file, set the authentication environment to production:

    auth:
      environment: production

Verification

1. To verify user and group provisioning, check the console logs.

   Successful synchronization example:

   2025-06-27T16:02:34.647Z catalog info Read 5 Keycloak users and 3 Keycloak groups in 0.4 seconds. Committing... class="KeycloakOrgEntityProvider" taskId="KeycloakOrgEntityProvider:default:refresh" taskInstanceId="db55c34b-46b3-402b-b12f-2fbc48498e82" trace_id="606f80a9ce00d1c86800718c4522f7c6" span_id="7ebc2a254a546e90" trace_flags="01"

   2025-06-27T16:02:34.650Z catalog info Committed 5 Keycloak users and 3 Keycloak groups in 0.0 seconds. class="KeycloakOrgEntityProvider" taskId="KeycloakOrgEntityProvider:default:refresh" taskInstanceId="db55c34b-46b3-402b-b12f-2fbc48498e82" trace_id="606f80a9ce00d1c86800718c4522f7c6" span_id="7ebc2a254a546e90" trace_flags="01"

2. To verify RHBK user authentication:

   1. Go to the Developer Hub login page.
   2. Your Developer Hub sign-in page displays Sign in using OIDC and the Guest user sign-in is disabled.
   3. Log in with OIDC by using the saved Username and Password values.

Procedure

1. Enter your LDAP credentials to Developer Hub, by adding the LDAP_SECRET environment variable to your Developer Hub secrets.

   $ oc patch secret my-rhdh-secrets --patch '{"stringData": { "LDAP_SECRET": "<ldap_secret>" }}'

   <ldap_secret>

   Enter your LDAP secret.

2. Recommended: To use a secure LDAP connection (ldaps://), add your LDAP certificates and keys files to a {a-platform-generic} secret.

   $ oc create secret generic my-rhdh-ldap-secrets \
       --from-file=./ldap_certs.pem \
       --from-file=./ldap_keys.pem

3. Enable the LDAP catalog provider plugin in your dynamic-plugins.yaml file.

   plugins:
     - package: './dynamic-plugins/dist/backstage-plugin-catalog-backend-module-ldap-dynamic'
       disabled: false

4. Enable provisioning GitHub users and groups to the Developer Hub software catalog, by adding the LDAP catalog provider section to your app-config.yaml file:

   1. Optional: Remove other catalog providers, by removing the other catalog providers section.

   2. Enter the mandatory fields:

      catalog:
        providers:
          ldapOrg:
            default:
              target: ldaps://ds.example.net
              bind:
                dn: cn=admin,ou=Users,dc=rhdh
                secret: ${LDAP_SECRET}
              users:
                - dn: OU=Users,OU=RHDH Local,DC=rhdh,DC=test
                  options:
                    filter: (uid=*)
              groups:
                - dn: OU=Groups,OU=RHDH Local,DC=rhdh,DC=test
              schedule:
                frequency: PT1H
                timeout: PT15M

      target

      Enter your LDAP server URL, such as ldaps://ds.example.net.

      bind

      Enter your service account information:

      dn

      Enter your service account distinguished name (DN), such as cn=admin,OU=Users,DC=rhdh,DC=test

      secret

      Enter the name of the variable containing your LDAP secret: ${LDAP_SECRET}.

      users

      Enter information about how to find your users:

      dn

      Enter the DN containing the user information.

      options

      filter

      Enter your filter, such as (uid=*) to provision to the RHDH software catalog only users with an existing uid.

      groups

      Enter information about how to find your groups:

      dn

      Enter the DN containing the group information.

      schedule

      Enter your schedule information:

      frequency

      Enter your schedule frequency, in the cron, ISO duration, or "human duration" format.

      timeout

      Enter your schedule timeout, in the ISO duration or "human duration" format.

      initialDelay

      Enter your schedule initial delay, in the ISO duration or "human duration" format.

   3. Optional: To change how Developer Hub maps LDAP user fields to the software catalog, enter optional maps and set fields.

      catalog:
        providers:
          ldapOrg:
            default:
              target: ldaps://ds.example.net
              bind:
                dn: cn=admin,ou=Users,dc=rhdh
                secret: ${LDAP_SECRET}
              users:
                - dn: OU=Users,OU=RHDH Local,DC=rhdh,DC=test
                  options:
                    filter: (uid=*)
                  map:
                    rdn: uid
                    name: uid
                    description: {}
                    displayName: cn
                    email: mail
                    picture: {}
                    memberOf: memberOf
                  set:
                    metadata.customField: 'hello'
              groups:
                - dn: OU=Groups,OU=RHDH Local,DC=rhdh,DC=test
              schedule:
                frequency: PT1H
                timeout: PT15M

      rdn

      To change the default value: uid, enter the relative distinguished name of each entry.

      name

      To change the default value: uid, enter the LDAP field to map to the RHDH metadata.name field.

      description

      To set a value, enter the LDAP field to map to the RHDH metadata.description field.

      displayName

      To change the default value: cn, enter the LDAP field to map to the RHDH metadata.displayName field.

      email

      To change the default value: mail, enter the LDAP field to map to the RHDH spec.profile.email field.


      To set a value, enter the LDAP field to map to the RHDH spec.profile.picture field.

      memberOf

      To change the default value: memberOf, enter the LDAP field to map to the RHDH spec.memberOf field.

      set

      To set a value, enter the hard coded JSON to apply to the entities after ingestion, such as metadata.customField: 'hello'.

   4. Optional: To change how Developer Hub maps LDAP group fields to the software catalog, enter optional groups.maps fields.

      catalog:
        providers:
          ldapOrg:
            default:
              target: ldaps://ds.example.net
              bind:
                dn: cn=admin,ou=Users,dc=rhdh
                secret: ${LDAP_SECRET}
              users:
                - dn: OU=Users,OU=RHDH Local,DC=rhdh,DC=test
                  options:
                    filter: (uid=*)
              groups:
                - dn: OU=Groups,OU=RHDH Local,DC=rhdh,DC=test
                  map:
                    rdn: uid
                    name: uid
                    description: {}
                    displayName: cn
                    email: mail
                    picture: {}
                    memberOf: memberOf
                    members: member
                    type: groupType
                  set:
                    metadata.customField: 'hello'
              schedule:
                frequency: PT1H
                timeout: PT15M

      rdn

      To change the default value: cn, enter the relative distinguished name of each entry.

      name

      To change the default value: cn, enter the LDAP field to map to the RHDH metadata.name field.

      description

      To set a value, enter the LDAP field to map to the RHDH metadata.description field.

      displayName

      To change the default value: cn, enter the LDAP field to map to the RHDH metadata.displayName field.

      email

      To change the default value: mail, enter the LDAP field to map to the RHDH spec.profile.email field.


      To set a value, enter the LDAP field to map to the RHDH spec.profile.picture field.

      memberOf

      To change the default value: memberOf, enter the LDAP field to map to the RHDH spec.memberOf field.

      members

      To change the default value: member, enter the LDAP field to map to the RHDH spec.children field.

      type

      To change the default value: groupType, enter the LDAP field to map to the RHDH spec.type field.

      set

      To set a value, enter the hard coded JSON to apply to the entities after ingestion, such as metadata.customField: 'hello'.

   5. Recommended: To use a secure LDAP connection (ldaps://), enter optional tls fields.

      Optional tls fields

      catalog:
        providers:
          ldapOrg:
            default:
              target: ldaps://ds.example.net
              bind:
                dn: cn=admin,ou=Users,dc=rhdh
                secret: ${LDAP_SECRET}
              users:
      ldapOrg:
        default:
          tls:
            rejectUnauthorized: true
            keys: '/path/to/keys.pem'
            certs: '/path/to/certs.pem'

      rejectUnauthorized

      Set to false to allow self-signed certificates

      Warning

      This option is not recommended for production.

      keys

      Enter a file containing private keys in PEM format

      certs

      Enter a file containing cert chains in PEM format

   6. Optional: Enter configuration for vendor-specific attributes to set custom attribute names for distinguished names (DN) and universally unique identifiers (UUID) in LDAP directories. Default values are defined per supported vendor and automatically detected.

      catalog:
        providers:
          ldapOrg:
            default:
              vendor:
                dnAttributeName: customDN
                uuidAttributeName: customUUID

      dnAttributeName

      Enter the attribute name that holds the distinguished name (DN) for an entry.

      uuidAttributeName

      Enter the attribute name that holds a universal unique identifier (UUID) for an entry.

   7. Optional: Enter low level users and groups configuration in the options subsection.

      catalog:
        providers:
          ldapOrg:
            default:
              target: ldaps://ds.example.net
              bind:
                dn: cn=admin,ou=Users,dc=rhdh
                secret: ${LDAP_SECRET}
              users:
                options:
                  scope: sub
                  filter: (uid=*)
                  attributes:
                    - cn
                    - uid
                    - description
                  paged:
                  pageSize: 500
              groups:
                options:
                  scope: sub
                  filter: (cn=*)
                  attributes:
                    - cn
                    - uid
                    - description
                  paged:
                    pageSize: 500
                    pagePause: true

      scope

      To change the default value: one, enter how deep the search should go within the directory tree:

      • base to search only the base DN.
      • one to search one level below the base DN.
      • sub to search all descendant entries.

      filter

      To change the default value: (objectclass=*), enter your LDAP filter. With the default mapping:

      • For users, enter (uid=*) to make sure only users with valid uid field is synced, since users without uid will cause error and ingestion fails.

      • For groups, enter (cn=*)

        Tip

        When you change the mapping, also update the filter.

      attributes

      To change the default value: all attributes ['*', '+'], enter the array of attribute names to import from LDAP.

      paged

      Enter a value to enable paged results.

      pageSize

      Enter a value to set the results page size, such as 500.

      pagePause

      Enter true to tell the client to wait for the asynchronous results of the next page, when the page limit has been reached.

5. Recommended: To use a secure LDAP connection (ldaps://), mount your LDAP certificates and keys files in your Developer Hub deployment, by editing your Backstage custom resource.

   kind: Backstage
   spec:
     application:
       extraFiles:
         mountPath: /opt/ldap-secrets
         secrets:
           - name: my-rhdh-database-database-secrets
             key: ldap-certs.pem, ldap-keys.pem

Procedure

1. Create a new backend module with the yarn new command.

2. Add your custom user and group transformers to the keycloakTransformerExtensionPoint.

   The following is an example plugins/<module_name>/src/module.ts file defining the backend module:

   import {
     GroupTransformer,
     keycloakTransformerExtensionPoint,
     UserTransformer,
   } from '@backstage-community/plugin-catalog-backend-module-keycloak';

   const customGroupTransformer: GroupTransformer = async (
     entity, // entity output from default parser
     realm, // Keycloak realm name
     groups, // Keycloak group representation
   ) => {
     /* apply transformations */
     return entity;
   };
   const customUserTransformer: UserTransformer = async (
     entity, // entity output from default parser
     user, // Keycloak user representation
     realm, // Keycloak realm name
     groups, // Keycloak group representation
   ) => {
     /* apply transformations */
     return entity;
   };

   export const keycloakBackendModuleTransformer = createBackendModule({
     pluginId: 'catalog',
     moduleId: 'keycloak-transformer',
     register(reg) {
       reg.registerInit({
         deps: {
           keycloak: keycloakTransformerExtensionPoint,
         },
         async init({ keycloak }) {
           keycloak.setUserTransformer(customUserTransformer);
           keycloak.setGroupTransformer(customGroupTransformer);
           /* highlight-add-end */
         },
       });
     },
   });

   Important

   Set the module’s pluginId to catalog to match the pluginId of the keycloak-backend; otherwise, the module fails to initialize.

3. Install this new backend module into your Developer Hub backend.

   $ backend.add(import(backstage-plugin-catalog-backend-module-keycloak-transformer))

Procedure

1. Allow Developer Hub to authenticate with GitHub, by creating a GitHub App.

   Note

   Use a GitHub App instead of an OAuth app to use fine-grained permissions, use short-lived tokens, scale with the number of installations by avoiding rate limits, and have a more transparent integration by avoiding to request user input.

   1. Register a GitHub App with the following configuration:

      GitHub App name

      Enter a unique name identifying your GitHub App, such as authenticating-with-rhdh-<GUID>.

      Homepage URL

      Enter your Developer Hub URL: https://<my_developer_hub_domain>.

      Authorization callback URL

      Enter your Developer Hub authentication backend URL: https://<my_developer_hub_domain>/api/auth/github/handler/frame.

      Webhook

      Clear "Active".

      Organization permissions

      Enable Read-only access to Members.

      Where can this GitHub App be installed?

      Select Only on this account.

   2. In the General → Clients secrets section, click Generate a new client secret.
   3. In the Install App tab, choose an account to install your GitHub App on.

   4. Save the following values for the next step:

      • Client ID
      • Client secret

2. Add your GitHub credentials to Developer Hub by adding the following key/value pairs to your Developer Hub secrets. You can use these secrets in the Developer Hub configuration files by using their environment variable name.

   GITHUB_CLIENT_ID

   Enter the saved Client ID.

   GITHUB_CLIENT_SECRET

   Enter the saved Client Secret.

   GITHUB_URL

   Enter the GitHub host domain: https://github.com.

   GITHUB_ORG

   Enter your GitHub organization name, such as <your_github_organization_name>.

3. Enable the GitHub catalog provider plugin in your dynamic-plugins.yaml file to import GitHub users and groups to the Developer Hub software catalog.

   plugins:
     - package: './dynamic-plugins/dist/backstage-plugin-catalog-backend-module-github-org-dynamic'
       disabled: false

4. Enable provisioning GitHub users and groups to the Developer Hub software catalog by adding the GitHub catalog provider section to your app-config.yaml file:

   catalog:
     providers:
       githubOrg:
         id: githuborg
         githubUrl: "${GITHUB_URL}"
         orgs: [ "${GITHUB_ORG}" ]
         schedule:
           frequency:
             minutes: 30
           initialDelay:
             seconds: 15
           timeout:
             minutes: 15

   id

   Enter a stable identifier for this provider, such as githuborg.

Verification

1. Verify user and group provisioning by checking the console logs.

   Successful synchronization example:

   {"class":"GithubMultiOrgEntityProvider","level":"info","message":"Reading GitHub users and teams for org: rhdh-dast","plugin":"catalog","service":"backstage","target":"https://github.com","taskId":"GithubMultiOrgEntityProvider:githuborg:refresh","taskInstanceId":"801b3c6c-167f-473b-b43e-e0b4b780c384","timestamp":"2024-09-09 23:55:58"}
   {"class":"GithubMultiOrgEntityProvider","level":"info","message":"Read 7 GitHub users and 2 GitHub groups in 0.4 seconds. Committing...","plugin":"catalog","service":"backstage","target":"https://github.com","taskId":"GithubMultiOrgEntityProvider:githuborg:refresh","taskInstanceId":"801b3c6c-167f-473b-b43e-e0b4b780c384","timestamp":"2024-09-09 23:55:59"}

2. To verify GitHub authentication:

   1. Go to the Developer Hub login page.
   2. Your Developer Hub sign-in page displays Sign in using GitHub and the Guest user sign-in is disabled.
   3. Log in with a GitHub account.

Procedure

1. Add the auth.providers.github section to your app-config.yaml file:

   auth:
     providers:
       github:
         production:
           clientId: ${GITHUB_CLIENT_ID}
           clientSecret: ${GITHUB_CLIENT_SECRET}
           disableIdentityResolution: true

   where: clientId:: Enter the configured secret variable name: ${GITHUB_CLIENT_ID}.

   clientSecret

   Enter the configured secret variable name: ${GITHUB_CLIENT_SECRET}.

   disableIdentityResolution

   Enter true to skip user identity resolution for this provider to enable sign-in from an auxiliary authentication provider.

   Warning

   Do not enable this setting on the primary authentication provider you plan on using for sign-in and identity management.

2. To disable the guest login option, in the app-config.yaml file, set the authentication environment to production:

   auth:
     environment: production

Verification

1. Go to the Developer Hub login page.
2. Log in with your primary authentication provider account.
3. In the top user menu, go to Settings > Authentication Providers.
4. In the GitHub line, click the Sign in button and log in.
5. In the GitHub line, the button displays Sign out.

Procedure

1. Generate a secure token.

   You can use a tool such as Node.js:

   $ node -p'require('crypto').randomBytes(24).toString('base64')'

   This command generates a 24-byte random value and encodes it in base64 format. The resulting token is sufficiently strong for authentication purposes, and properly encoded for use in HTTP headers.

2. Add the generated token in your Developer Hub secrets in OpenShift to define the <YOUR_SERVICE_TOKEN_ENV_VAR> environment variable where your services can access it.

3. Add the generated token or JWKS URL to your app-config.yaml Developer Hub configuration file in OpenShift.

   backend:
     auth:
       - type: static
         options:
           token: "$<YOUR_SERVICE_TOKEN_ENV_VAR>"
           subject: "<your_service_name>"
         accessRestrictions:
           - plugin: "<target_plugin_name>"

   type

   Enter static to specify that authentication is using a static token.

   options

   Enter the configuration options for static token authentication.

   token

   Enter the environment variable name from the earlier step.

   subject

   (Optional) Enter a unique identifier for the service that will be using this token.

   plugin

   (Optional) Enter the name of the target plugin that the service will communicate with.

4. Use the token in the Authorization header of your service requests.

   When making requests from one service to another, include the static token in the Authorization header as follows:

   Authorization: Bearer <your_generated_token>

   Replace <your_generated_token> with the actual token you generated in step 1.

   For instance, to list all available locations in the catalog by using the curl command, you would use:

   $ curl --location --request GET 'https://<my_developer_hub_domain>/api/catalog/locations' \
   --header 'Content-Type: application/json' \
   --header 'Authorization: Bearer <your_generated_token>'

Procedure

1. Restrict access to specific plugins.

   For example, to restrict access to the catalog plugin for the static tokens, add the following accessRestrictions section to your app-config.yaml Developer Hub configuration file:

   backend:
     auth:
       externalAccess:
         - type: static
             accessRestrictions:
             - plugin: catalog

   type

   Specify whether this is a jwks or static token.

   plugin

   Specify the allowed plugin, such as catalog, scaffolder, or techdocs.

   With this configuration:

   • The token is only allowed to make requests to the catalog plugin.
   • The token has unrestricted access to all actions within the catalog plugin.

2. Restrict access by action attributes, to filter permissions based on what kind of action to allow.

   List the specific actions defined by the permission, such as create and read.

   backend:
     auth:
       externalAccess:

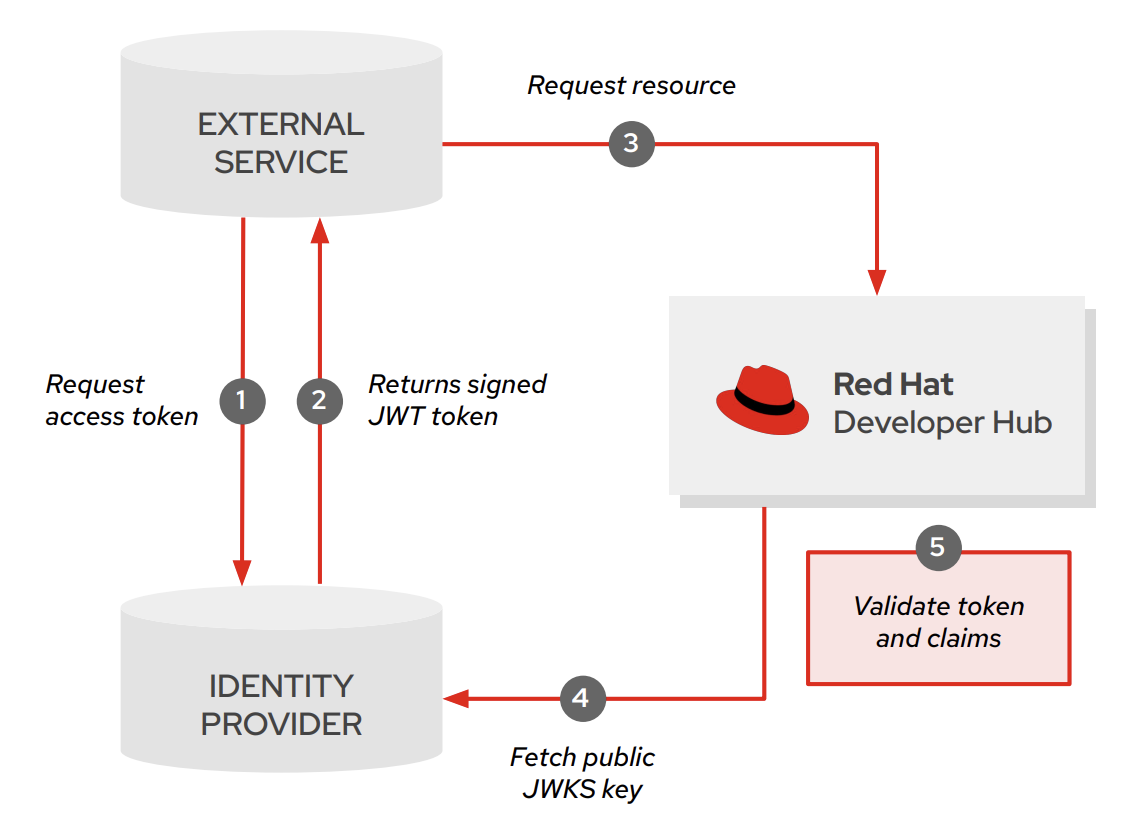

         - type: jwks
           accessRestrictions:
             - plugin: catalog
               permissionAttribute:
                 action:
                   - create
                   - read

3. Restrict access by explicit permission IDs, to control access at the permission rule level.

   List the exact ID of the permission to allow.

   backend:
     auth:
       externalAccess:
         - type: jwks
           accessRestrictions:
             - plugin: catalog
               permission:
                 - catalog.entity.create
                 - catalog.entity.read

   By choosing between explicit permission IDs and action-based attributes, you can strike the right balance between precision and flexibility depending on your external service needs.

Procedure

1. In the app-config.yaml file, set omitIdentityTokenOwnershipClaim to true as follows:

   auth:
     omitIdentityTokenOwnershipClaim: true
