Red Hat Developer Hub 1.7

Installing and viewing plugins in Red Hat Developer Hub

Installing plugins in Red Hat Developer Hub

Red Hat Customer Content Services

Abstract

Administrative users can install and configure plugins to enable other users to use plugins to extend Red Hat Developer Hub (RHDH) functionality.

1. Installing dynamic plugins in Red Hat Developer Hub

The dynamic plugin support is based on the backend plugin manager package, which is a service that scans a configured root directory (dynamicPlugins.rootDirectory in the app-config.yaml file) for dynamic plugin packages and loads them dynamically.

You can use the dynamic plugins that come preinstalled with Red Hat Developer Hub or install external dynamic plugins from a public NPM registry.

1.1. Installing dynamic plugins with the Red Hat Developer Hub Operator

You can store the configuration for dynamic plugins in a ConfigMap object that your Backstage custom resource (CR) can reference.

Note

If the pluginConfig field references environment variables, you must define the variables in your <my_product_secrets> secret.

Procedure

  1. From the OpenShift Container Platform web console, select the ConfigMaps tab.
  2. Click Create ConfigMap.
  3. From the Create ConfigMap page, select the YAML view option in Configure via and edit the file, if needed.

    Example ConfigMap object using the GitHub dynamic plugin

    kind: ConfigMap
    apiVersion: v1
    metadata:
      name: dynamic-plugins-rhdh
    data:
      dynamic-plugins.yaml: |
        includes:
          - dynamic-plugins.default.yaml
        plugins:
          - package: './dynamic-plugins/dist/backstage-plugin-catalog-backend-module-github-dynamic'
            disabled: false
            pluginConfig:
              catalog:
                providers:
                  github:
                    organization: "${GITHUB_ORG}"
                    schedule:
                      frequency: { minutes: 1 }
                      timeout: { minutes: 1 }
                      initialDelay: { seconds: 100 }

  4. Click Create.
  5. Go to the Topology view.
  6. Click on the overflow menu for the Red Hat Developer Hub instance that you want to use and select Edit Backstage to load the YAML view of the Red Hat Developer Hub instance.

    operator install 2
  7. Add the dynamicPluginsConfigMapName field to your Backstage CR. For example:

    apiVersion: rhdh.redhat.com/v1alpha3
    kind: Backstage
    metadata:
      name: my-rhdh
    spec:
      application:
    # ...
        dynamicPluginsConfigMapName: dynamic-plugins-rhdh
    # ...
  8. Click Save.
  9. Navigate back to the Topology view and wait for the Red Hat Developer Hub pod to start.
  10. Click the Open URL icon to start using the Red Hat Developer Hub platform with the new configuration changes.

Verification

  • Ensure that the dynamic plugins configuration has been loaded, by appending /api/dynamic-plugins-info/loaded-plugins to your Red Hat Developer Hub root URL and checking the list of plugins:

    Example list of plugins

    [
      {
        "name": "backstage-plugin-catalog-backend-module-github-dynamic",
        "version": "0.5.2",
        "platform": "node",
        "role": "backend-plugin-module"
      },
      {
        "name": "backstage-plugin-techdocs",
        "version": "1.10.0",
        "role": "frontend-plugin",
        "platform": "web"
      },
      {
        "name": "backstage-plugin-techdocs-backend-dynamic",
        "version": "1.9.5",
        "platform": "node",
        "role": "backend-plugin"
      },
    ]

1.2. Installing dynamic plugins using the Helm chart

You can deploy a Developer Hub instance by using a Helm chart, which is a flexible installation method. With the Helm chart, you can sideload dynamic plugins into your Developer Hub instance without having to recompile your code or rebuild the container.

To install dynamic plugins in Developer Hub using Helm, add the following global.dynamic parameters in your Helm chart:

  • plugins: the dynamic plugins list intended for installation. By default, the list is empty. You can populate the plugins list with the following fields:

    • package: a package specification for the dynamic plugin package that you want to install. You can use a package for either a local or an external dynamic plugin installation. For a local installation, use a path to the local folder containing the dynamic plugin. For an external installation, use a package specification from a public NPM repository.
    • integrity (required for external packages): an integrity checksum in the form of <alg>-<digest> specific to the package. Supported algorithms include sha256, sha384 and sha512.
    • pluginConfig: an optional plugin-specific app-config.yaml YAML fragment. See plugin configuration for more information.
    • disabled: disables the dynamic plugin if set to true. Default: false.
    • forceDownload: Set the value to true to force a reinstall of the plugin, bypassing the cache. The default value is false.
    • pullPolicy: Similar to the forceDownload parameter and is consistent with other image container platforms. You can use one of the following values for this key:

      • Always: This value compares the image digest in the remote registry and downloads the artifact if it has changed, even if the plugin was previously downloaded.
      • IfNotPresent: This value downloads the artifact if it is not already present in the dynamic-plugins-root folder, without checking image digests.

        Note

        The pullPolicy setting is also applied to the NPM downloading method, although Always will download the remote artifact without a digest check. The existing forceDownload option remains functional, however, the pullPolicy option takes precedence. The forceDownload option may be deprecated in a future Developer Hub release.

  • includes: a list of YAML files utilizing the same syntax.
Note

The plugins list in the includes file is merged with the plugins list in the main Helm values. If a plugin package is mentioned in both plugins lists, the plugins fields in the main Helm values override the plugins fields in the includes file. The default configuration includes the dynamic-plugins.default.yaml file, which contains all of the dynamic plugins preinstalled in Developer Hub, whether enabled or disabled by default.

1.2.1. Example Helm chart configurations for dynamic plugin installations

The following examples demonstrate how to configure the Helm chart for specific types of dynamic plugin installations.

Configuring a local plugin and an external plugin when the external plugin requires a specific configuration

global:
  dynamic:
    plugins:
      - package: <alocal package-spec used by npm pack>
      - package: <external package-spec used by npm pack>
        integrity: sha512-<some hash>
        pluginConfig: ...

Disabling a plugin from an included file

global:
  dynamic:
    includes:
      - dynamic-plugins.default.yaml
    plugins:
      - package: <some imported plugins listed in dynamic-plugins.default.yaml>
        disabled: true

Enabling a plugin from an included file

global:
  dynamic:
    includes:
      - dynamic-plugins.default.yaml
    plugins:
      - package: <some imported plugins listed in dynamic-plugins.custom.yaml>
        disabled: false

Enabling a plugin that is disabled in an included file

global:
  dynamic:
    includes:
      - dynamic-plugins.default.yaml
    plugins:
      - package: <some imported plugins listed in dynamic-plugins.custom.yaml>
        disabled: false

1.3. Installing dynamic plugins in an air-gapped environment

You can install external plugins in an air-gapped environment by setting up a custom NPM registry.

You can configure the NPM registry URL and authentication information for dynamic plugin packages using a Helm chart. For dynamic plugin packages obtained through npm pack, you can use a .npmrc file.

Using the Helm chart, add the .npmrc file to the NPM registry by creating a secret. For example:

apiVersion: v1
kind: Secret
metadata:
  name: <release_name>-dynamic-plugins-npmrc 1
type: Opaque
stringData:
  .npmrc: |
    registry=<registry-url>
    //<registry-url>:_authToken=<auth-token>
          ...
1
Replace <release_name> with your Helm release name. This name is a unique identifier for each chart installation in the Kubernetes cluster.

2. Third-party plugins in Red Hat Developer Hub

You can integrate third-party dynamic plugins into Red Hat Developer Hub to enhance its functionality without modifying its source code or rebuilding it. To add these plugins, export them as derived packages.

While exporting the plugin package, you must ensure that dependencies are correctly bundled or marked as shared, depending on their relationship to the Developer Hub environment.

To integrate a third-party plugin into Developer Hub:

  1. First, obtain the plugin’s source code.
  2. Export the plugin as a dynamic plugin package. See Section 2.1, “Exporting third-party plugins in Red Hat Developer Hub”.
  3. Package and publish the dynamic plugin. See Section 2.2, “Packaging and publishing third-party plugins as dynamic plugins”.
  4. Install the plugin in the Developer Hub environment. See Section 2.3, “Installing third-party plugins in Red Hat Developer Hub”.

2.1. Exporting third-party plugins in Red Hat Developer Hub

To use plugins in Red Hat Developer Hub, you can export plugins as derived dynamic plugin packages. These packages contain the plugin code and dependencies, ready for dynamic plugin integration into Developer Hub.

Prerequisites

  • The @red-hat-developer-hub/cli package is installed. Use the latest version (@latest tag) for compatibility with the most recent features and fixes.
  • Node.js and NPM is installed and configured.
  • The third-party plugin is compatible with your Red Hat Developer Hub version. For more information, see Version compatibility matrix.
  • The third-party plugin must have a valid package.json file in its root directory, containing all required metadata and dependencies.

    Backend plugins

    To ensure compatibility with the dynamic plugin support and enable their use as dynamic plugins, existing backend plugins must be compatible with the new Backstage backend system. Additionally, these plugins must be rebuilt using a dedicated CLI command.

    The new Backstage backend system entry point (created using createBackendPlugin() or createBackendModule()) must be exported as the default export from either the main package or an alpha package (if the plugin instance support is still provided using alpha APIs). This doesn’t add any additional requirement on top of the standard plugin development guidelines of the plugin instance.

    The dynamic export mechanism identifies private dependencies and sets the bundleDependencies field in the package.json file. This export mechanism ensures that the dynamic plugin package is published as a self-contained package, with its private dependencies bundled in a private node_modules folder.

    Certain plugin dependencies require specific handling in the derived packages, such as:

    • Shared dependencies are provided by the RHDH application and listed as peerDependencies in package.json file, not bundled in the dynamic plugin package. For example, by default, all @backstage scoped packages are shared.

      You can use the --shared-package flag to specify shared dependencies, that are expected to be provided by Red Hat Developer Hub application and not bundled in the dynamic plugin package.

      To treat a @backstage package as private, use the negation prefix (!). For example, when a plugin depends on the package in @backstage that is not provided by the Red Hat Developer Hub application.

    • Embedded dependencies are bundled into the dynamic plugin package with their dependencies hoisted to the top level. By default, packages with -node or -common suffixes are embedded.

      You can use the --embed-package flag to specify additional embedded packages. For example, packages from the same workspace that do not follow the default naming convention.

      The following is an example of exporting a dynamic plugin with shared and embedded packages:

      Example dynamic plugin export with shared and embedded packages

      npx @red-hat-developer-hub/cli@latest plugin export --shared-package '!/@backstage/plugin-notifications/' --embed-package @backstage/plugin-notifications-backend

      In the previous example:

    • @backstage/plugin-notifications package is treated as a private dependency and is bundled in the dynamic plugin package, despite being in the @backstage scope.
    • @backstage/plugin-notifications-backend package is marked as an embedded dependency and is bundled in the dynamic plugin package.
    Front-end plugins

    Front-end plugins can use scalprum for configuration, which the CLI can generate automatically during the export process. The generated default configuration is logged when running the following command:

    Example command to log the default configuration

    npx @red-hat-developer-hub/cli@latest plugin export

    The following is an example of default scalprum configuration:

    Default scalprum configuration

    "scalprum": {
      "name": "<package_name>",  // The Webpack container name matches the NPM package name, with "@" replaced by "." and "/" removed.
      "exposedModules": {
        "PluginRoot": "./src/index.ts"  // The default module name is "PluginRoot" and doesn't need explicit specification in the app-config.yaml file.
      }
    }

    You can add a scalprum section to the package.json file. For example:

    Example scalprum customization

    "scalprum": {
      "name": "custom-package-name",
      "exposedModules": {
        "FooModuleName": "./src/foo.ts",
        "BarModuleName": "./src/bar.ts"
        // Define multiple modules here, with each exposed as a separate entry point in the Webpack container.
      }
    }

    Dynamic plugins might need adjustments for Developer Hub needs, such as static JSX for mountpoints or dynamic routes. These changes are optional but might be incompatible with static plugins.

    To include static JSX, define an additional export and use it as the dynamic plugin’s importName. For example:

    Example static and dynamic plugin export

    // For a static plugin
    export const EntityTechdocsContent = () => {...}

    // For a dynamic plugin
    export const DynamicEntityTechdocsContent = {
      element: EntityTechdocsContent,
      staticJSXContent: (
        <TechDocsAddons>
          <ReportIssue />
        </TechDocsAddons>
      ),
    };

Procedure

  • Use the plugin export command from the @red-hat-developer-hub/cli package to export the plugin:

    Example command to export a third-party plugin

    npx @red-hat-developer-hub/cli@latest plugin export

    Ensure that you execute the previous command in the root directory of the plugin’s JavaScript package (containing package.json file).

    The resulting derived package will be located in the dist-dynamic subfolder. The exported package name consists of the original plugin name with -dynamic appended.

    Warning

    The derived dynamic plugin JavaScript packages must not be published to the public NPM registry. For more appropriate packaging options, see Section 2.2, “Packaging and publishing third-party plugins as dynamic plugins”. If you must publish to the NPM registry, use a private registry.

2.2. Packaging and publishing third-party plugins as dynamic plugins

After exporting a third-party plugin, you can package the derived package into one of the following supported formats:

  • Open Container Initiative (OCI) image (recommended)
  • TGZ file
  • JavaScript package

    Important

    Exported dynamic plugin packages must only be published to private NPM registries.

2.2.1. Creating an OCI image with dynamic packages

Prerequisites

Procedure

  1. Navigate to the plugin’s root directory (not the dist-dynamic directory).
  2. Run the following command to package the plugin into an OCI image:

    Example command to package an exported third-party plugin

    npx @red-hat-developer-hub/cli@latest plugin package --tag quay.io/example/image:v0.0.1

    In the previous command, the --tag argument specifies the image name and tag.

  3. Run one of the following commands to push the image to a registry:

    Example command to push an image to a registry using podman

    podman push quay.io/example/image:v0.0.1

    Example command to push an image to a registry using docker

    docker push quay.io/example/image:v0.0.1

    The output of the package-dynamic-plugins command provides the plugin’s path for use in the dynamic-plugin-config.yaml file.

2.2.2. Creating a TGZ file with dynamic packages

Prerequisites

Procedure

  1. Navigate to the dist-dynamic directory.
  2. Run the following command to create a tgz archive:

    Example command to create a tgz archive

    npm pack

    You can obtain the integrity hash from the output of the npm pack command by using the --json flag as follows:

    Example command to obtain the integrity hash of a tgz archive

    npm pack --json | head -n 10

  3. Host the archive on a web server accessible to your RHDH instance, and reference its URL in the dynamic-plugin-config.yaml file as follows:

    Example dynamic-plugin-config.yaml file

    plugins:
      - package: https://example.com/backstage-plugin-myplugin-1.0.0.tgz
        integrity: sha512-<hash>

  4. Run the following command to package the plugins:

    Example command to package a dynamic plugin

    npm pack --pack-destination ~/test/dynamic-plugins-root/

    Tip

    To create a plugin registry using HTTP server on OpenShift Container Platform, run the following commands:

    Example commands to build and deploy an HTTP server in OpenShift Container Platform

    oc project my-rhdh-project
    oc new-build httpd --name=plugin-registry --binary
    oc start-build plugin-registry --from-dir=dynamic-plugins-root --wait
    oc new-app --image-stream=plugin-registry

  5. Configure your RHDH to use plugins from the HTTP server by editing the dynamic-plugin-config.yaml file:

    Example configuration to use packaged plugins in RHDH

    plugins:
      - package: http://plugin-registry:8080/backstage-plugin-myplugin-1.9.6.tgz

2.2.3. Creating a JavaScript package with dynamic packages

Warning

The derived dynamic plugin JavaScript packages must not be published to the public NPM registry. If you must publish to the NPM registry, use a private registry.

Prerequisites

Procedure

  1. Navigate to the dist-dynamic directory.
  2. Run the following command to publish the package to your private NPM registry:

    Example command to publish a plugin package to an NPM registry

    npm publish --registry <npm_registry_url>

    Tip

    You can add the following to your package.json file before running the export command:

    Example package.json file

    {
      "publishConfig": {
        "registry": "<npm_registry_url>"
      }
    }

    If you modify publishConfig after exporting the dynamic plugin, re-run the plugin export command to ensure the correct configuration is included.

2.3. Installing third-party plugins in Red Hat Developer Hub

You can install a third-party plugins in Red Hat Developer Hub without rebuilding the RHDH application.

The location of the dynamic-plugin-config.yaml file depends on the deployment method. For more details, refer to Installing dynamic plugins with the Red Hat Developer Hub Operator and Installing dynamic plugins using the Helm chart.

Plugins are defined in the plugins array within the dynamic-plugin-config.yaml file. Each plugin is represented as an object with the following properties:

  • package: The plugin’s package definition, which can be an OCI image, a TGZ file, a JavaScript package, or a directory path.
  • disabled: A boolean value indicating whether the plugin is enabled or disabled.
  • integrity: The integrity hash of the package, required for TGZ file and JavaScript packages.
  • pluginConfig: The plugin’s configuration. For backend plugins, this is optional; for frontend plugins, it is required. The pluginConfig is a fragment of the app-config.yaml file, and any added properties are merged with the RHDH app-config.yaml file.
Note

You can also load dynamic plugins from another directory, though this is intended for development or testing purposes and is not recommended for production, except for plugins included in the RHDH container image. For more information, see Section 3, “Enabling plugins added in the RHDH container image”.

2.3.1. Loading a plugin packaged as an OCI image

Prerequisites

Procedure

  1. To retrieve plugins from an authenticated registry, complete the following steps:

    1. Log in to the container image registry.

      podman login <registry>
    2. Verify the content of the auth.json file created after the login.

      cat ${XDG_RUNTIME_DIR:-~/.config}/containers/auth.json
    3. Create a secret file using the following example:

      oc create secret generic _<secret_name>_ --from-file=auth.json=${XDG_RUNTIME_DIR:-~/.config}/containers/auth.json 1
      • For an Operator-based deployment, replace <secret_name> with dynamic-plugins-registry-auth.
      • For a Helm-based deployment, replace <secret_name> with <Helm_release_name>_-dynamic-plugins-registry-auth.
  2. Define the plugin with the oci:// prefix in the following format in dynamic-plugins.yaml file:

    oci://<image_name>:<tag>!<plugin_name>

    Example configuration in dynamic-plugins.yaml file

    plugins:
      - disabled: false
        package: oci://quay.io/example/image:v0.0.1!backstage-plugin-myplugin

  3. To perform an integrity check, use the image digest in place of the tag in the dynamic-plugins.yaml file as shown in the following example:

    Example configuration in dynamic-plugins.yaml file

    plugins:
      - disabled: false
        package: oci://quay.io/example/image@sha256:28036abec4dffc714394e4ee433f16a59493db8017795049c831be41c02eb5dc!backstage-plugin-myplugin

  4. To apply the changes, restart the RHDH application.

2.3.2. Loading a plugin packaged as a TGZ file

Prerequisites

Procedure

  1. Specify the archive URL and its integrity hash in the dynamic-plugins.yaml file using the following example:

    Example configuration in dynamic-plugins.yaml file

    plugins:
      - disabled: false
        package: https://example.com/backstage-plugin-myplugin-1.0.0.tgz
        integrity: sha512-9WlbgEdadJNeQxdn1973r5E4kNFvnT9GjLD627GWgrhCaxjCmxqdNW08cj+Bf47mwAtZMt1Ttyo+ZhDRDj9PoA==

  2. To apply the changes, restart the RHDH application.

2.3.3. Loading a plugin packaged as a JavaScript package

Prerequisites

Procedure

  1. Run the following command to obtain the integrity hash from the NPM registry:

    npm view --registry <registry-url> <npm package>@<version> dist.integrity
  2. Specify the package name, version, and its integrity hash in the dynamic-plugins.yaml file as follows:

    Example configuration in dynamic-plugins.yaml file

    plugins:
      - disabled: false
        package: @example/backstage-plugin-myplugin@1.0.0
        integrity: sha512-9WlbgEdadJNeQxdn1973r5E4kNFvnT9GjLD627GWgrhCaxjCmxqdNW08cj+Bf47mwAtZMt1Ttyo+ZhDRDj9PoA==

  3. If you are using a custom NPM registry, create a .npmrc file with the registry URL and authentication details:

    Example code for .npmrc file

    registry=<registry-url>
    //<registry-url>:_authToken=<auth-token>

  4. When using OpenShift Container Platform or Kubernetes:

    • Use the Helm chart to add the .npmrc file by creating a secret. For example:

      Example secret configuration

      apiVersion: v1
      kind: Secret
      metadata:
        name: <release_name>-dynamic-plugins-npmrc 1
      type: Opaque
      stringData:
        .npmrc: |
          registry=<registry-url>
          //<registry-url>:_authToken=<auth-token>

      1 1
      Replace <release_name> with your Helm release name. This name is a unique identifier for each chart installation in the Kubernetes cluster.
    • For RHDH Helm chart, name the secret using the following format for automatic mounting:

      <release_name>-dynamic-plugins-npmrc

  5. To apply the changes, restart the RHDH application.

2.3.4. Example of installing a third-party plugin in Red Hat Developer Hub

This section describes the process for integrating the Todo plugin into your Developer Hub.

  1. Obtain the third-party plugin source code: Clone the plugins repository and navigate to the Todo plugin directory:

    Obtain the third-party plugin source code

    $ git clone https://github.com/backstage/community-plugins
    $ cd community-plugins/workspaces/todo
    $ yarn install

  2. Export backend and front-end plugins: Run the following commands to build the backend plugin, adjust package dependencies for dynamic loading, and generate self-contained configuration schema:

    Export the backend plugin

    $ cd todo-backend
    $ npx @red-hat-developer-hub/cli@latest plugin export

    Output of exporting the backend plugin commands

    Building main package
      executing     yarn build ✔
    Packing main package to dist-dynamic/package.json
    Customizing main package in dist-dynamic/package.json for dynamic loading
      moving @backstage/backend-common to peerDependencies
      moving @backstage/backend-openapi-utils to peerDependencies
      moving @backstage/backend-plugin-api to peerDependencies
      moving @backstage/catalog-client to peerDependencies
      moving @backstage/catalog-model to peerDependencies
      moving @backstage/config to peerDependencies
      moving @backstage/errors to peerDependencies
      moving @backstage/integration to peerDependencies
      moving @backstage/plugin-catalog-node to peerDependencies
    Installing private dependencies of the main package
       executing     yarn install --no-immutable ✔
    Validating private dependencies
    Validating plugin entry points
    Saving self-contained config schema in /Users/user/Code/community-plugins/workspaces/todo/plugins/todo-backend/dist-dynamic/dist/configSchema.json

    You can run the following commands to set default dynamic UI configurations, create front-end plugin assets, and to generate a configuration schema for a front-end plugin:

    Export the front-end plugin

    $ cd ../todo
    $ npx @red-hat-developer-hub/cli@latest plugin export

    Output of exporting the front-end plugin commands

    No scalprum config. Using default dynamic UI configuration:
    {
      "name": "backstage-community.plugin-todo",
      "exposedModules": {
        "PluginRoot": "./src/index.ts"
      }
    }
    If you wish to change the defaults, add "scalprum" configuration to plugin "package.json" file, or use the '--scalprum-config' option to specify an external config.
    Packing main package to dist-dynamic/package.json
    Customizing main package in dist-dynamic/package.json for dynamic loading
    Generating dynamic frontend plugin assets in /Users/user/Code/community-plugins/workspaces/todo/plugins/todo/dist-dynamic/dist-scalprum
      263.46 kB  dist-scalprum/static/1417.d5271413.chunk.js
    ...
    ...
    ...
      250 B      dist-scalprum/static/react-syntax-highlighter_languages_highlight_plaintext.0b7d6592.chunk.js
    Saving self-contained config schema in /Users/user/Code/community-plugins/workspaces/todo/plugins/todo/dist-dynamic/dist-scalprum/configSchema.json

  3. Package and publish a third-party plugin: Run the following commands to navigate to the workspace directory and package the dynamic plugin to build the OCI image:

    Build an OCI image

    $ cd ../..
    $ npx @red-hat-developer-hub/cli@latest plugin package --tag quay.io/user/backstage-community-plugin-todo:v0.1.1

    Output of building an OCI image commands

      executing     podman --version ✔
    Using existing 'dist-dynamic' directory at plugins/todo
    Using existing 'dist-dynamic' directory at plugins/todo-backend
    Copying 'plugins/todo/dist-dynamic' to '/var/folders/5c/67drc33d0018j6qgtzqpcsbw0000gn/T/package-dynamic-pluginsmcP4mU/backstage-community-plugin-todo
    No plugin configuration found at undefined create this file as needed if this plugin requires configuration
    Copying 'plugins/todo-backend/dist-dynamic' to '/var/folders/5c/67drc33d0018j6qgtzqpcsbw0000gn/T/package-dynamic-pluginsmcP4mU/backstage-community-plugin-todo-backend-dynamic
    No plugin configuration found at undefined create this file as needed if this plugin requires configuration
    Writing plugin registry metadata to '/var/folders/5c/67drc33d0018j6qgtzqpcsbw0000gn/T/package-dynamic-pluginsmcP4mU/index.json'
    Creating image using podman
      executing     echo "from scratch
    COPY . .
    " | podman build --annotation com.redhat.rhdh.plugins='[{"backstage-community-plugin-todo":{"name":"@backstage-community/plugin-todo","version":"0.2.40","description":"A Backstage plugin that lets you browse TODO comments in your source code","backstage":{"role":"frontend-plugin","pluginId":"todo","pluginPackages":["@backstage-community/plugin-todo","@backstage-community/plugin-todo-backend"]},"homepage":"https://backstage.io","repository":{"type":"git","url":"https://github.com/backstage/community-plugins","directory":"workspaces/todo/plugins/todo"},"license":"Apache-2.0"}},{"backstage-community-plugin-todo-backend-dynamic":{"name":"@backstage-community/plugin-todo-backend","version":"0.3.19","description":"A Backstage backend plugin that lets you browse TODO comments in your source code","backstage":{"role":"backend-plugin","pluginId":"todo","pluginPackages":["@backstage-community/plugin-todo","@backstage-community/plugin-todo-backend"]},"homepage":"https://backstage.io","repository":{"type":"git","url":"https://github.com/backstage/community-plugins","directory":"workspaces/todo/plugins/todo-backend"},"license":"Apache-2.0"}}]' -t 'quay.io/user/backstage-community-plugin-todo:v0.1.1' -f - .
        ✔
    Successfully built image quay.io/user/backstage-community-plugin-todo:v0.1.1 with following plugins:
      backstage-community-plugin-todo
      backstage-community-plugin-todo-backend-dynamic

    Here is an example dynamic-plugins.yaml for these plugins:

    plugins:
      - package: oci://quay.io/user/backstage-community-plugin-todo:v0.1.1!backstage-community-plugin-todo
        disabled: false
      - package: oci://quay.io/user/backstage-community-plugin-todo:v0.1.1!backstage-community-plugin-todo-backend-dynamic
        disabled: false

    Push the OCI image to a container registry:

    $ podman push quay.io/user/backstage-community-plugin-todo:v0.1.1

    Output of pushing the OCI image command

    Getting image source signatures
    Copying blob sha256:86a372c456ae6a7a305cd464d194aaf03660932efd53691998ab3403f87cacb5
    Copying config sha256:3b7f074856ecfbba95a77fa87cfad341e8a30c7069447de8144aea0edfcb603e
    Writing manifest to image destination

  4. Install and configure the third-party plugin: Add the following plugin definitions to your dynamic-plugins.yaml file:

    Plugin definitions in dynamic-plugins.yaml file

    packages:
     - package: oci://quay.io/user/backstage-community-plugin-todo:v0.1.1!backstage-community-plugin-todo
       pluginConfig:
         dynamicPlugins:
           frontend:
             backstage-community.plugin-todo:
               mountPoints:
                 - mountPoint: entity.page.todo/cards
                   importName: EntityTodoContent
               entityTabs:
                 - path: /todo
                   title: Todo
                   mountPoint: entity.page.todo
     - package: oci://quay.io/user/backstage-community-plugin-todo:v0.1.1!backstage-community-plugin-todo-backend-dynamic
       disabled: false

3. Enabling plugins added in the RHDH container image

In the RHDH container image, a set of dynamic plugins is preloaded to enhance functionality. However, due to mandatory configuration requirements, most of the plugins are disabled.

You can enable and configure the plugins in the RHDH container image, including how to manage the default configuration, set necessary environment variables, and ensure the proper functionality of the plugins within your application.

Prerequisites

  • You have access to the dynamic-plugins.default.yaml file, which lists all preloaded plugins and their default configuration.
  • You have deployed the RHDH application, and have access to the logs of the install-dynamic-plugins init container.
  • You have the necessary permissions to modify plugin configurations and access the application environment.
  • You have identified and set the required environment variables referenced by the plugin’s default configuration. These environment variables must be defined in the Helm Chart or Operator configuration.

Procedure

  1. Start your RHDH application and access the logs of the install-dynamic-plugins init container within the RHDH pod.
  2. Identify the Red Hat supported plugins that are disabled by default.
  3. Copy the package configuration from the dynamic-plugins.default.yaml file.
  4. Open the plugin configuration file and locate the plugin entry you want to enable.

    The location of the plugin configuration file varies based on the deployment method. For more details, see Installing dynamic plugins with the Red Hat Developer Hub Operator and Installing dynamic plugins using the Helm chart.

  5. Modify the disabled field to false and add the package name as follows:

    Example plugin configuration

    plugins:
      - disabled: false
        package: ./dynamic-plugins/dist/backstage-plugin-catalog-backend-module-github-dynamic

    For more information about how to configure dynamic plugins in Developer Hub, see Installing dynamic plugins in Red Hat Developer Hub.

Verification

  1. Restart the RHDH application and verify that the plugin is successfully activated and configured.
  2. Verify the application logs for confirmation and ensure the plugin is functioning as expected.

4. Extensions in Red Hat Developer Hub

Important

These features are for Technology Preview only. Technology Preview features are not supported with Red Hat production service level agreements (SLAs), might not be functionally complete, and Red Hat does not recommend using them for production. These features provide early access to upcoming product features, enabling customers to test functionality and provide feedback during the development process.

For more information on Red Hat Technology Preview features, see Technology Preview Features Scope.

Red Hat Developer Hub (RHDH) includes the Extensions feature which is preinstalled and enabled by default. Extensions provides users with a centralized interface to browse and manage available plugins

You can use Extensions to discover plugins that extend RHDH functionality, streamline development workflows, and improve the developer experience.

4.1. Viewing available plugins

You can view plugins available for your Red Hat Developer Hub application on the Extensions page.

Procedure

  1. Open your Developer Hub application and click Administration > Extensions.
  2. Go to the Catalog tab to view a list of available plugins and related information.

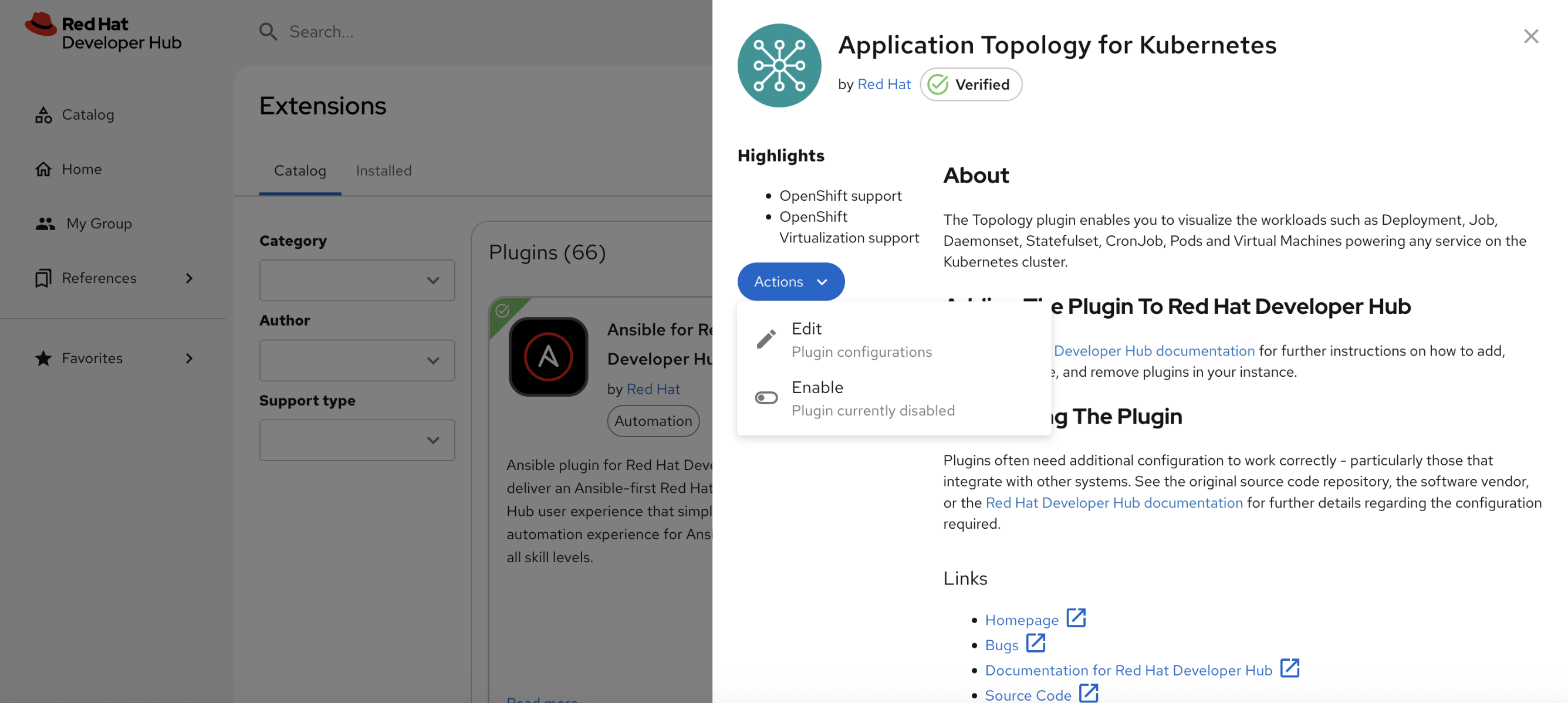

    Extensions Catalog

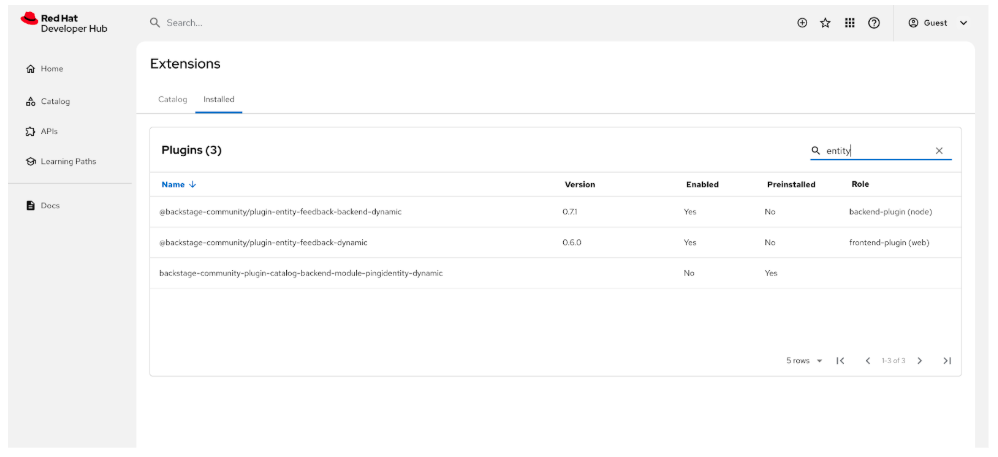

4.2. Viewing installed plugins

Using the Dynamic Plugins Info front-end plugin, you can view plugins that are currently installed in your Red Hat Developer Hub application. This plugin is enabled by default.

Procedure

  1. Open your Developer Hub application and click Administration > Extensions.
  2. Go to the Installed tab to view a list of installed plugins and related information.

4.3. Search and filter the plugins

4.3.1. Search by plugin name

You can use the search bar in the header to filter the Extensions plugin cards by name. For example, if you type “A” into the search bar, Extensions shows only the plugins that contain the letter “A” in the Name field.

Extensions catalog with a Dynatrace search

Optionally, you can use the search bar in conjunction with a filter to filter only plugins of the selected filter by name. For example, you can apply the Category filter and then type a character into the search bar to view only Openshift plugins that contain the typed character in the name.

The following filters are available:

  • Category
  • Author
  • Support type

4.4. Removing Extensions

The Extensions feature plugins are preinstalled in Red Hat Developer Hub (RHDH) and enabled by default. If you want to remove Extensions from your RHDH instance, you can disable the relevant plugins.

Procedure

  1. To disable the the Extensions feature plugins, edit your dynamic-plugins.yaml with the following content.

    dynamic-plugins.yaml fragment

    plugins:
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-marketplace
        disabled: true
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-catalog-backend-module-marketplace-dynamic
        disabled: true
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-marketplace-backend-dynamic
        disabled: true

Note

If you disable the Extensions feature plugins, the Catalog and Installed tabs will also be removed. You can still view installed plugins by clicking on Administration > Extensions.

4.5. Managing plugins by using Extensions

You can install and configure plugins by using Extensions.

Warning

Installation and configuration of plugins by using Extensions will only work in development environments. This feature is not supported in production environments.

In a production environment, users will be notified that plugin installation is not permitted.

extensions restart plugin 1

In a development environment:

  • Administrators can install a plugin using the default configuration preloaded in the editor, or modify the configuration before installing. Upon successful installation, users will be notified that a backend restart is required to complete the installation process.
  • When a plugin is installed, administrators can access the Actions drop-down in the side panel of the plugin. Available actions include:

    • Editing the configuration used during installation
    • Disabling or enabling the plugin
    • After performing any of these actions, users will be notified that a backend restart is required for the changes to take effect.

4.5.1. Configuring RBAC to manage Extensions

You can add Extensions permissions by creating or updating and existing RBAC role. For more information about using RBAC to manage role-based controls, see Managing role-based access controls (RBAC) using the Red Hat Developer Hub Web UI.

4.5.1.1. Creating a role in the Developer Hub UI to manage Extensions

Prerequisites

  • You have enabled RBAC, have a policy administrator role in Developer Hub, and have added plugins with permission.

Procedure

  1. Go to Administration at the bottom of the sidebar in the Developer Hub.

    The RBAC tab appears, displaying all the created roles in the Developer Hub.

  2. Click Create to create a role.
  3. Enter the user name and description (optional) of role in the given fields and click Next.
  4. In Add users and groups, select the user name, and click Next.
  5. In Add permission policies, select Extensions from the plugins dropdown.
  6. Expand Extensions, select both the Create and Read permissions for the Extensions plugin and click Next.
  7. Click Create to create the role.

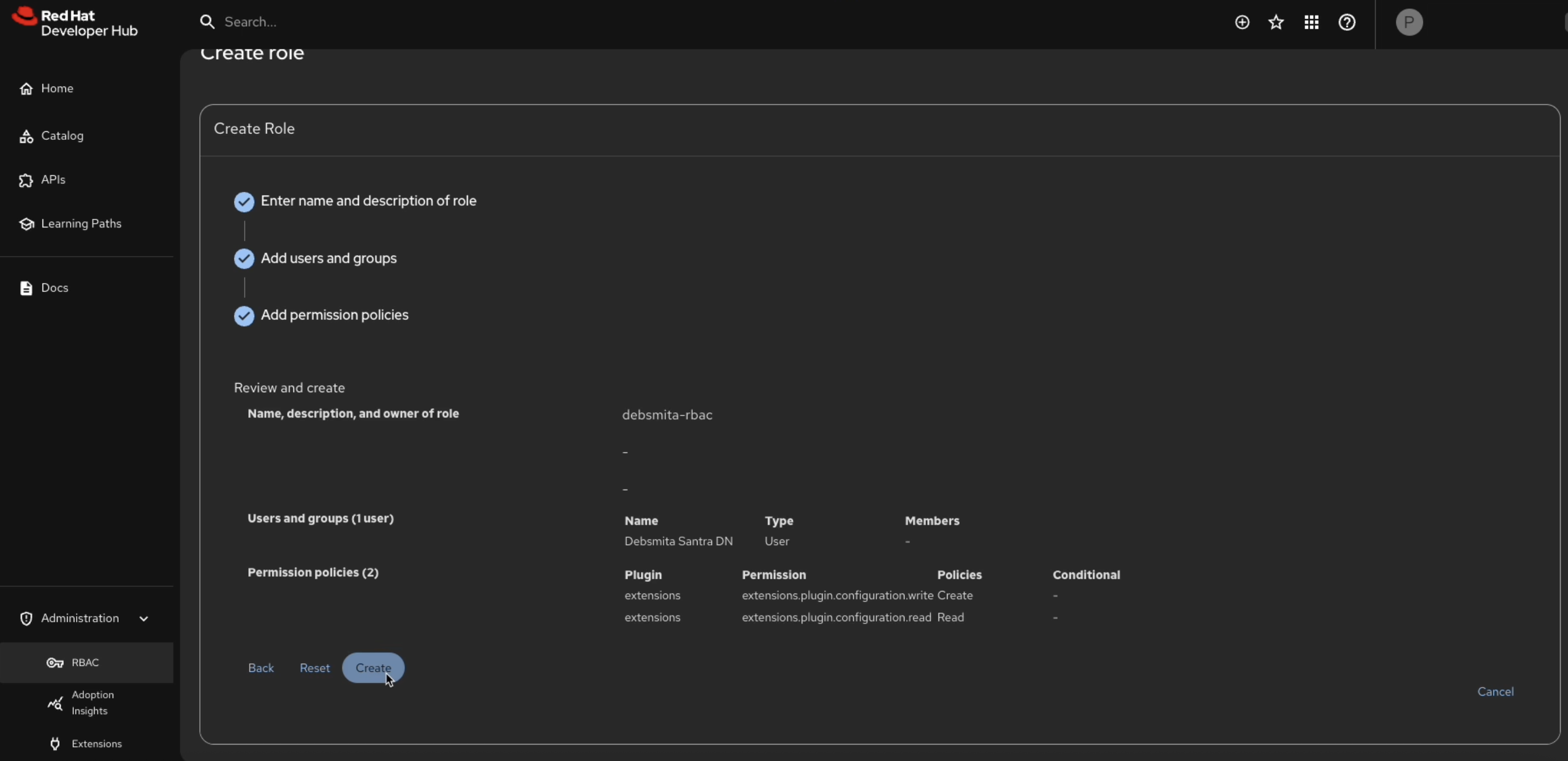

    extensions rbac role create

Verification

After you refresh the RHDH application, when you select a plugin, the Actions drop-down is active. When you click the Actions drop-down, you can edit the the plugin configuration, and enable or disable the plugin.

4.5.2. Configuring RHDH to install plugins by using Extensions

When you install a plugin using Extensions UI, the configuration that you use is saved to a dynamic-plugins.extensions.yaml file within the dynamic-plugins-root persistent volume. This ensures the configuration is available when you restart the application, allowing you to edit or re-enable the plugin.

You must create a persistent volume claim (PVC) to ensure that the cache persists when you restart the RHDH application. For more information about using the dynamic plugins cache, see Using the dynamic plugins cache.

Prerequisites

  • You have created a persistent volume claim (PVC) for the dynamic plugins cache with the name dynamic-plugins-root.
  • You have installed Red Hat Developer Hub using the Helm chart or the Operator.
  • You have installed the OpenShift CLI (oc).

Procedure

  1. Create the extensions configuration file and save it as dynamic-plugins.extensions.yaml. For example:

    includes:
      - dynamic-plugins.default.yaml

    plugins:
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-marketplace
        disabled: false
        pluginConfig:
          dynamicPlugins:
            frontend:
              red-hat-developer-hub.backstage-plugin-marketplace:
                appIcons:
                  - name: marketplace
                    importName: MarketplaceIcon
                dynamicRoutes:
                  - path: /extensions/catalog
                    importName: DynamicMarketplacePluginRouter
                mountPoints:
                  - mountPoint: application/provider
                    importName: InstallationContextProvider
                  - mountPoint: internal.plugins/tab
                    importName: DynamicMarketplacePluginContent
                    config:
                      path: marketplace
                      title: Catalog
                      icon: CatalogTabIcon
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-marketplace-backend-dynamic
        disabled: false
        pluginConfig:
          extensions:
            installation:
              enabled: true
              saveToSingleFile:
                file: /opt/app-root/src/dynamic-plugins-root/dynamic-plugins.extensions.yaml
  2. Copy the file to your cluster by running the following commands:

    oc get pods -n <your-namespace>

    oc cp ./dynamic-plugins.extensions.yaml <your-namespace>/<pod-name>:/opt/app-root/src/dynamic-plugins-root/dynamic-plugins.extensions.yaml
  3. Update your RHDH application to use this file:

    1. For operator-based installations:

      1. Update your Backstage CR to update the NODE_ENV environment variable to development, as follows:

        apiVersion: rhdh.redhat.com/v1alpha3
        kind: Backstage
        metadata:
          name: developer-hub
          namespace: rhdh
        spec:
          application:
            dynamicPluginsConfigMapName: dynamic-plugins-rhdh
            extraEnvs:
              envs:
                - name: NODE_ENV
                  value: "development"
              secrets:
                - name: secrets-rhdh
            extraFiles:
              mountPath: /opt/app-root/src
            route:
              enabled: true
          database:
            enableLocalDb: true
      2. Update your dynamic-plugins-rhdh config map to include your extensions configuration file, as follows:

        kind: ConfigMap
        apiVersion: v1
        metadata:
          name: dynamic-plugins-rhdh
          namespace: rhdh
        data:
         dynamic-plugins.yaml: |
           includes:
             - dynamic-plugins.default.yaml
             - /dynamic-plugins-root/dynamic-plugins.extensions.yaml
           plugins: []
    2. For Helm chart installations:

      1. Upgrade the Helm release to include your extensions configuration file and update the NODE_ENV environment variable to development:

        global:
          auth:
            backend:
              enabled: true
          clusterRouterBase: apps.<clusterName>.com
          dynamic:
            includes:
              - dynamic-plugins.default.yaml
              - /dynamic-plugins-root/dynamic-plugins.extensions.yaml
        upstream:
          backstage:
            extraEnvVars:
              - name: NODE_ENV
                value: development
      2. Click Upgrade

Verification

Enable a plugin by using the Extensions UI, restart your RHDH application and refresh the UI to confirm that the plugin is enabled.

4.5.3. Configuring RHDH Local to install plugins by using Extensions

You can use RHDH Local to test installing plugins by using Extensions.

Prerequisites

Procedure

  1. Update your dynamic-plugins.override.yaml file:

    includes:
      - dynamic-plugins.default.yaml

    plugins:
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-marketplace
        disabled: false
        pluginConfig:
          dynamicPlugins:
            frontend:
              red-hat-developer-hub.backstage-plugin-marketplace:
                appIcons:
                  - name: marketplace
                    importName: MarketplaceIcon
                dynamicRoutes:
                  - path: /extensions/catalog
                    importName: DynamicMarketplacePluginRouter
                mountPoints:
                   - mountPoint: application/provider
                     importName: InstallationContextProvider
                  - mountPoint: internal.plugins/tab
                    importName: DynamicMarketplacePluginContent
                    config:
                      path: marketplace
                      title: Catalog
      - package: ./dynamic-plugins/dist/red-hat-developer-hub-backstage-plugin-marketplace-backend-dynamic
        disabled: false
        pluginConfig:
          extensions:
            installation:
              enabled: true
              saveToSingleFile:
                file: /opt/app-root/src/configs/dynamic-plugins/dynamic-plugins.override.yaml
  2. Update your compose.yaml file:

    rhdh:
      container_name: rhdh
      environment:
        NODE_OPTIONS: "--inspect=0.0.0.0:9229"
        NODE_ENV: "development"

Verification

Enable a plugin by using the Extensions UI, restart your RHDH application and refresh the UI to confirm that the plugin is enabled.

4.5.4. Installing plugins by using Extensions

You can install and configure plugins by using Extensions.

Prerequisites

  • You have configured RHDH to allow plugins installation from Extensions.
  • You have configured RBAC to allow the current user to manage plugin configuration.

Procedure

  1. Navigate to Extensions.
  2. Select a plugin to install.
  3. Click the Install button.

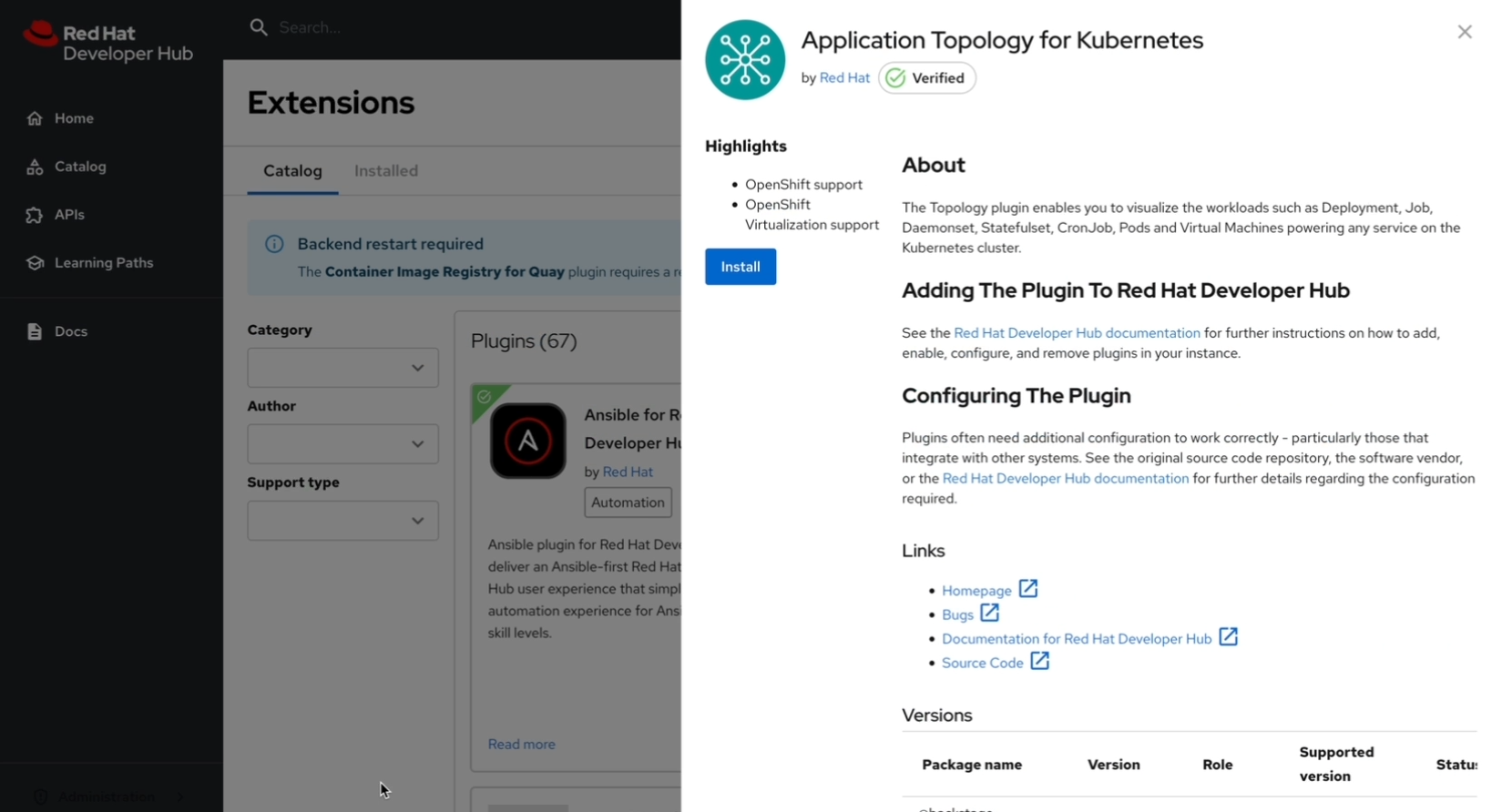

    extensions install plugin 1

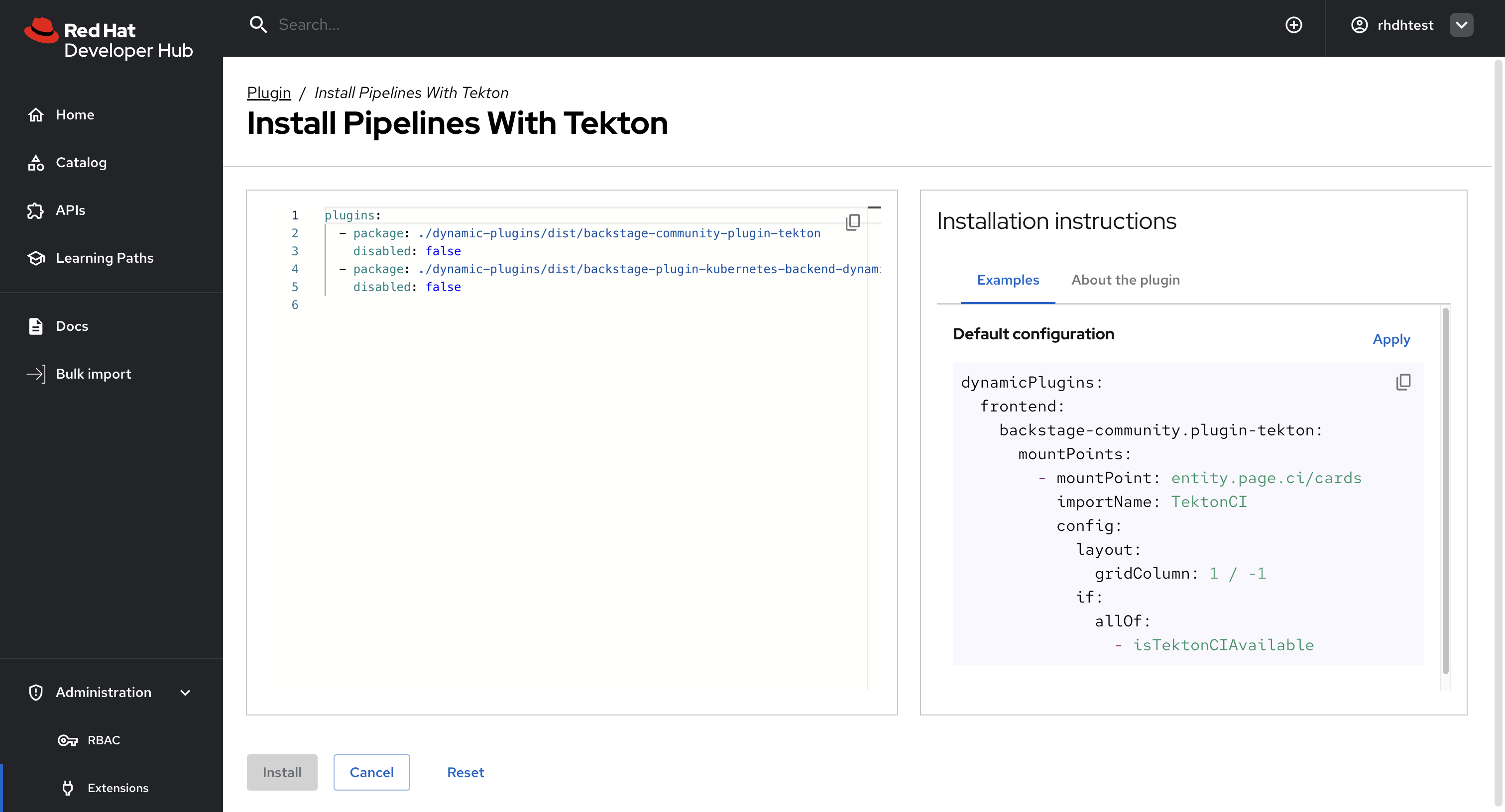

    The code editor is displayed which displays the plugin default configuration.

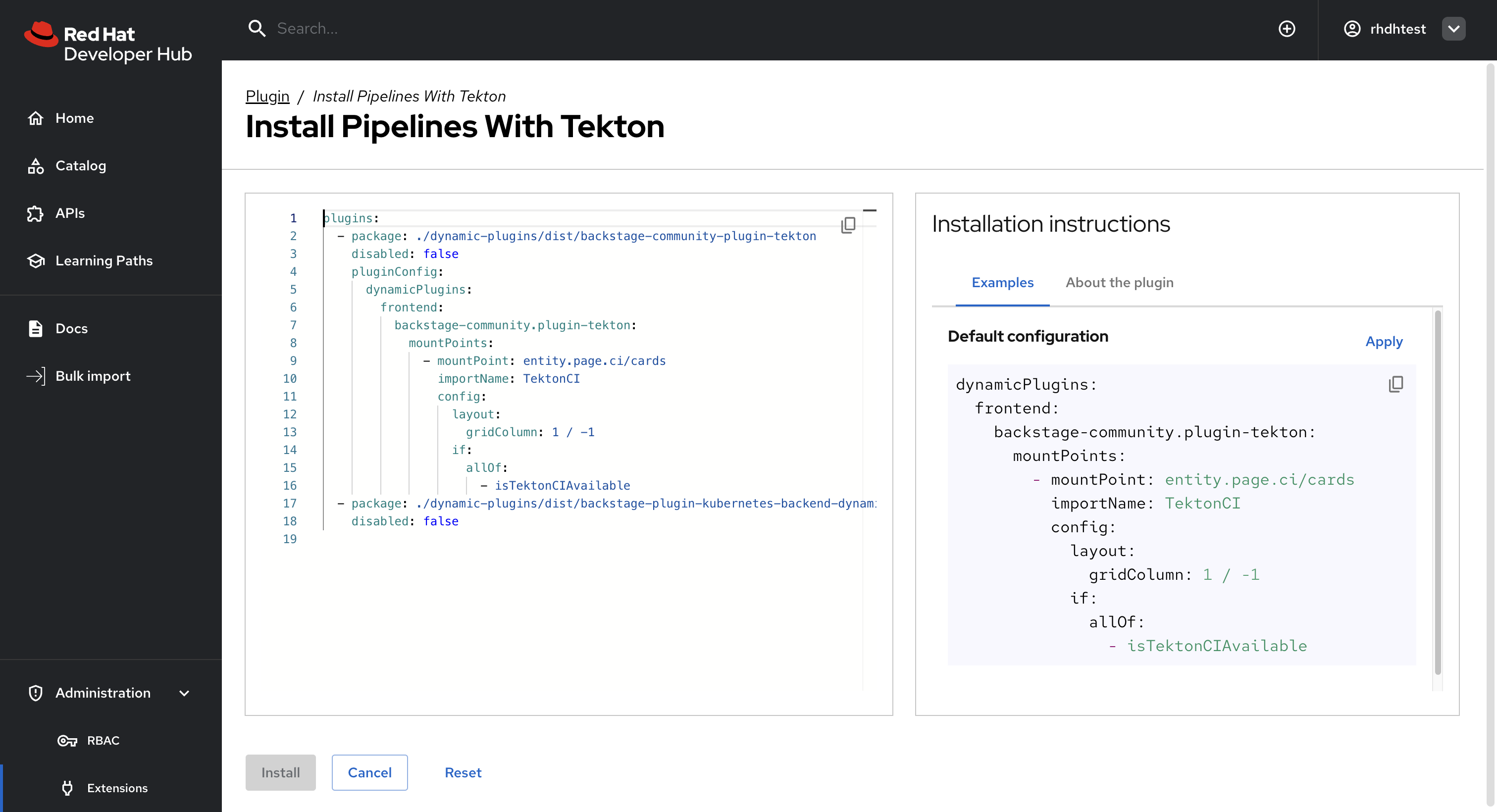

  4. Update the plugin configuration, if necessary.

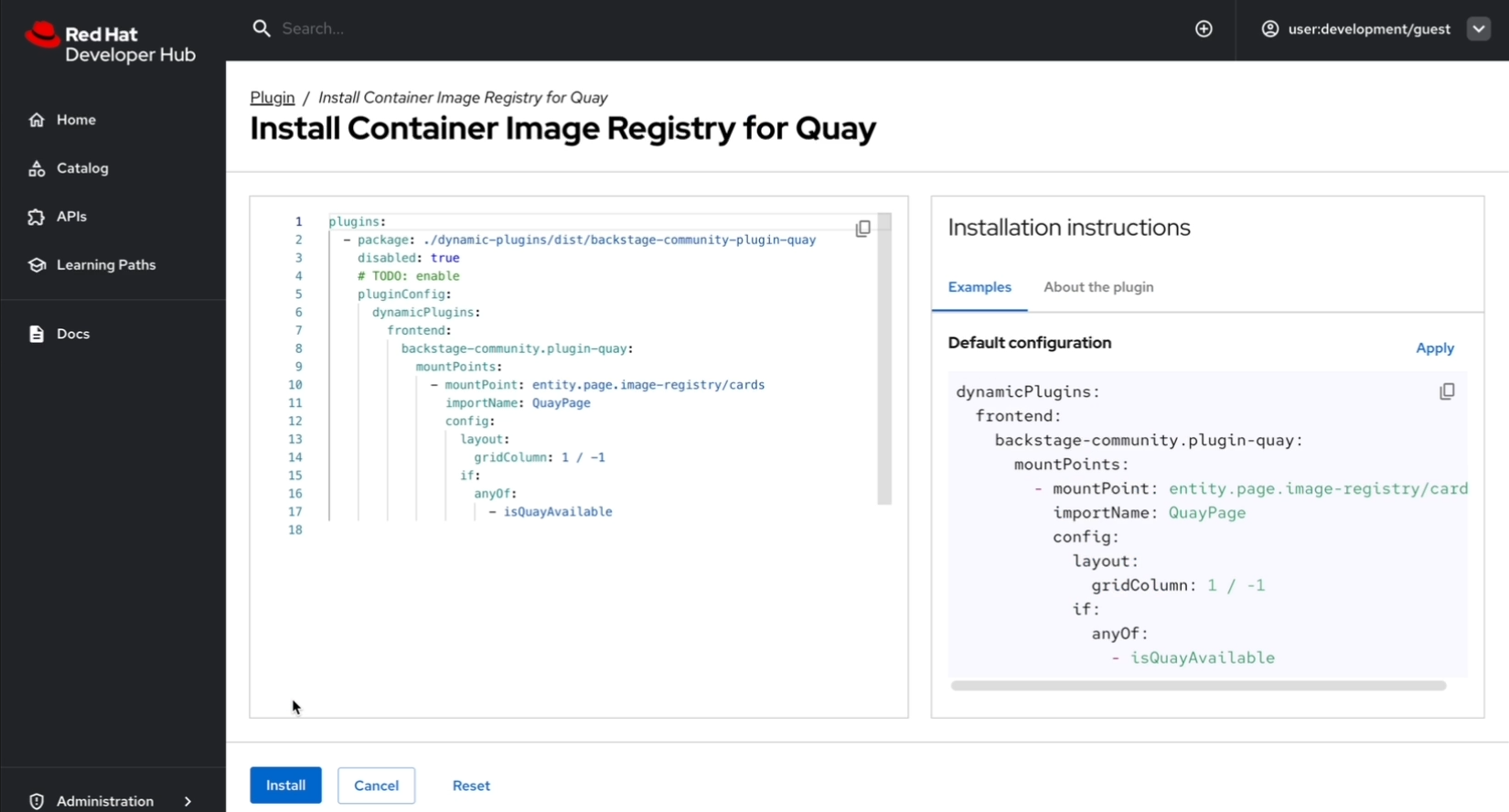

    extensions install plugin 2
  5. Click Install

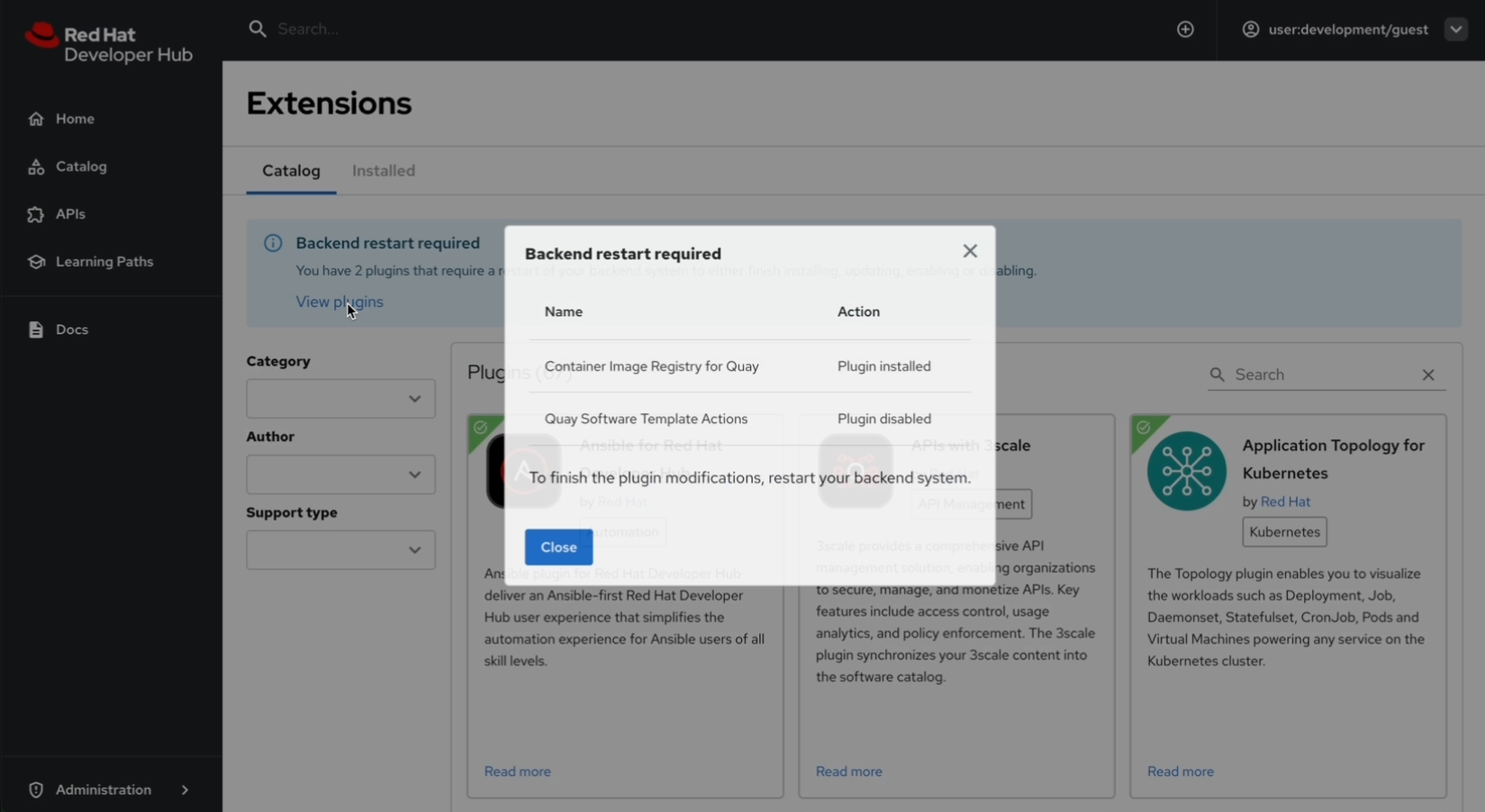

  6. To view the plugins that require a restart, click View plugins in the alert message.

    extensions install plugin 3
  7. Restart your RHDH application.

Verification

  1. After you restart your RHDH application, navigate to Extensions.
  2. Select the plugin that you have installed.
  3. The Actions button is displayed.

4.5.5. Enabling and disabling plugins by using Extensions

Prerequisites

  • You have configured RHDH to allow plugins installation from Extensions.
  • You have configured RBAC to allow the current user to access to manage plugin configuration.

Procedure

  1. Navigate to Extensions.
  2. Select a plugin to enable or disable.
  3. Click on the Enable/Disable slider.

    extensions enable plugin 1
  4. To view the plugins that require a restart, click View plugins in the alert message.

    extensions install plugin 3
  5. Restart your RHDH application.

Verification

  1. After you restart your RHDH application, navigate to Extensions.
  2. Select the plugin that you have installed.
  3. The Enable/Disable slider is updated.

5. Troubleshooting plugins

5.1. RHDH pod fails to start after enabling a plugin

Procedure

  1. Inspect your RHDH pod logs to identify if the plugin requires specific environment variables or additional configuration, for example:

    Plugin '<PLUGIN_NAME>' threw an error during startup, waiting for X other plugins to finish before shutting down the process. Plugin '<PLUGIN_NAME>' startup failed; caused by Error: Missing required config value at '<concretePluginRequiredVariable.name>' in 'app-config.local.yaml' type="initialization"
  2. Verify the required configuration by inspecting dynamic-plugins.default.yaml file that lists the required environment variables for each plugin. The variables for each plugin are in the format of ${PLUGIN_VARIABLE_NAME}
  3. If any required environment variables are missing, set the environment variables by using a secret. For example:

    kind: Secret
    apiVersion: v1
    metadata:
      name: rhdh-secrets
      labels:
        backstage.io/kubernetes-id: developer-hub
    data:
      PLUGIN_VARIABLE_NAME: 'dummy-value'
    type: Opaque
  4. Mount the secret:

    1. If RHDH is deployed by using the Operator, update your Backstage CR, as follows:

      spec:
        application:
          extraEnvs:
            secrets:
              - name: rhdh-secrets
    2. If RHDH is deployed by using the Helm chart, in the upstream.backstage key in your Helm chart values, enter the name of the Developer Hub rhdh-secrets secret as the value for the extraEnvVarsSecrets field. For example:

      upstream:
        backstage:
          extraEnvVarsSecrets:
            - rhdh-secrets

6. Front-end plugin wiring

You can configure front-end plugins to customize icons, integrate components at mount points, and provide or replace utility APIs.

6.1. Extending internal icon catalog

You can use the internal catalog to fetch icons for configured routes with sidebar navigation menu entry.

Procedure

  • Add a custom icon to the internal icon catalog for use in the menu item of a plugin by using the appIcons configuration as shown in the following example:
# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-plugin:  # The plugin package name
            appIcons:
              - name: fooIcon # The icon catalog name
                # (Optional): The set of assets to access within the plugin. If not specified, the system uses the `PluginRoot` module.
                module: CustomModule
                # (Optional): The actual component name to be rendered as a standalone page. If not specified, the system uses the `default` export.
                importName: FooIcon
Note

The package_name key under dynamicPlugins.frontend must match the scalprum.name value in your plugin’s package.json. This ensures your dynamic plugin loads correctly during runtime.

6.2. Defining dynamic routes for new plugin pages

Procedure

  1. Define each route by specifying a unique path and, if needed, an importName if it is different from the default export.
  2. Expose additional routes in a dynamic plugin by configuring dynamicRoutes as shown in the following example:

    # dynamic-plugins-config.yaml
    plugins:
      - plugin: <plugin_path_or_url>
        disabled: false
        pluginConfig:
          dynamicPlugins:
            frontend:
              my-plugin: # The plugin package name
                dynamicRoutes:
                    # The unique path in the application. The path cannot override existing routes except the `/` home route.
                  - path: /my-plugin
                    # (Optional): The set of assets to access within the plugin. If not specified, the system uses the `PluginRoot` module.
                    module: CustomModule
                    # (Optional): The component name as a standalone page. If not specified, the system uses the `default` export.
                    importName: FooPluginPage
                    # Allows you to extend the main sidebar navigation and point to a new route.
                    menuItem:
                      icon: fooIcon
                      text: Foo Plugin Page
                      enabled: false
                    config: # (Optional): Passes `props` to a custom sidebar item
                      props: ...

    The menuItem accepts the following properties:

    • text: The label shown to the user.
    • icon: The Backstage system icon name.
    • enabled: Optional: Allows the user to remove a menuItem from the sidebar when it is set to false.
    • importName: Specifies the optional name of an exported SidebarItem component.

      To configure a custom SidebarItem to enhance experiences such as notification badges, ensure the component accepts the following properties:

export type MySidebarItemProps = {
  to: string; // supplied by the sidebar during rendering, this will be the path configured for the dynamicRoute
};

Example specifying a custom SidebarItem component:

# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-dynamic-plugin-package-name:
            dynamicRoutes:
              - importName: CustomPage
                menuItem:
                  config:
                    props:
                      text: Click Me!
                  importName: SimpleSidebarItem
                path: /custom_page

6.3. Customizing menu items in the sidebar navigation

You can customize the order and parent-child relationships of plugin menu items in the main sidebar navigation using the menu items configuration as shown in the following example:

# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-plugin: # The plugin package name
            menuItems:
              # The unique name in the main sidebar navigation (for example, either a standalone menu item or a parent menu item)
              <menu_item_name>:
                # (Optional): The icon for the menu item, which refers to a Backstage system icon
                icon: fooIcon
                # (Optional): The display title of the menu item
                title: Foo Plugin Page
                # (Optional): The order in which menu items appear. The default priority is `0`.
                priority: 10
                # (Optional): Defines the parent menu item to nest the current item under
                parent: favorites
                # (Optional): Allows you to remove a `menuItem` from the sidebar when it is set to `false`
                enabled: false

Handling Complex Paths:

  • For simple paths like path: /my-plugin, the menu_item_name should be my-plugin.
  • For complex paths like /metrics/users/info, the menu_item_name should represent the full path in dot notation (for example metrics.users.info).
  • Ignore trailing and leading slashes in paths as follows:

    • For path: /docs, the menu_item_name is docs.
    • For path: /metrics/users, the menu_item_name is metrics.users.
Note

Red Hat Developer Hub supports up to 3 levels of nested menu items.

6.4. Binding to existing plugins

You can bind to existing plugins and their routes, and declare new targets sourced from dynamic plugins as shown in the following routeBindings configuration:

# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-plugin: # The plugin package name
            routeBindings:
              targets: # A new bind target
                  # (Optional): Defaults to importName. Explicit name of the plugin that exposes the bind target.
                - name: barPlugin
                  # (Required): Explicit import name that reference a BackstagePlugin<{}> implementation.
                  importName: barPlugin
                  # # (Optional): Same as key in `scalprum.exposedModules` key in the `package.json` file of the plugin.
                  module: CustomModule
              bindings:
                - bindTarget: "barPlugin.externalRoutes" # (Required): One of the supported or imported bind targets
                  bindMap: #  A required map of route bindings similar to `bind` function options
                    headerLink: "fooPlugin.routes.root"

To configure routeBindings, complete the following steps:

  1. Define new targets using routeBindings.targets. Set the required importName to a BackstagePlugin<{}> implementation.
  2. Declare route bindings using the routeBindings.bindings field by setting bindTarget to the name of the target to bind to. This is a dynamic or static target, such as:

    • catalogPlugin.externalRoutes
    • catalogImportPlugin.externalRoutes
    • techdocsPlugin.externalRoutes
    • scaffolderPlugin.externalRoutes

      You can extend existing pages with additional content using mount points, which are predefined identifiers available throughout the application.

6.5. Using mount points

Mount points are defined identifiers available across Red Hat Developer Hub. You can use these points to extend existing pages with additional content.

6.5.1. Customizing entity page

You can extend catalog components and additional views.

The available mount points include the following:

Table 1. Input parameters

Mount pointDescriptionVisible even when no plugins are enabled

admin.page.plugins

Administration plugins page

NO

admin.page.rbac

Administration RBAC page

NO

entity.context.menu

Catalog entity context menu

YES for all entities

entity.page.overview

Catalog entity overview page

YES for all entities

entity.page.topology

Catalog entity Topology tab

NO

entity.page.issues

Catalog entity Issues tab

NO

entity.page.pull-requests

Catalog entity Pull Requests tab

NO

entity.page.ci

Catalog entity CI tab

NO

entity.page.cd

Catalog entity CD tab

NO

entity.page.kubernetes

Catalog entity Kubernetes tab

NO

entity.page.image-registry

Catalog entity Image Registry tab

NO

entity.page.monitoring

Catalog entity Monitoring tab

NO

entity.page.lighthouse

Catalog entity Lighthouse tab

NO

entity.page.api

Catalog entity API tab

YES for entity of kind: Component and spec.type: 'service'

entity.page.dependencies

Catalog entity Dependencies tab

YES for entity of kind: Component

entity.page.docs

Catalog entity Documentation tab

YES for entity that satisfies isTechDocsAvailable

entity.page.definition

Catalog entity Definitions tab

YES for entity of kind: Api

entity.page.diagram

Catalog entity Diagram tab

YES for entity of kind: System

search.page.types

Search result type

YES, default catalog search type is available

search.page.filters

Search filters

YES, default catalog kind and lifecycle filters are visible

search.page.results

Search results content

YES, default catalog search is present

Note

Mount points within catalog such as entity.page. are rendered as tabs and become visible only if at least one plugin contributes to them, or if they can render static content.

Each entity.page. mount point contains the following variations:

  • /context type that serves to create React contexts
  • /cards type for regular React components

The following is an example of the overall configuration structure of a mount point:

# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-plugin: # The plugin package name
            mountPoints: # (Optional): Uses existing mount points
              - mountPoint: <mountPointName>/[cards|context]
                module: CustomModule
                importName: FooPluginPage
                config: # (Optional): Allows you to pass additional configuration to the component
                  layout: {} # Used only in `/cards` type which renders visible content
                  # Use only in `/cards` type which renders visible content. `if` is passed to `<EntitySwitch.Case if={<here>}`.
                  if:
                    allOf|anyOf|oneOf:
                      - isMyPluginAvailable
                      - isKind: component
                      - isType: service
                      - hasAnnotation: annotationKey
                  props: {} # Useful when you are passing additional data to the component

The available conditions include:

  • allOf: All conditions must be met
  • anyOf: At least one condition must be met
  • oneOf: Only one condition must be met

Conditions are:

  • isKind: Accepts a string or a list of string with entity kinds. For example isKind: component renders the component only for entity of kind: Component.
  • isType: Accepts a string or a list of string with entity types. For example isType: service renders the component only for entities of spec.type: 'service'.
  • hasAnnotation: Accepts a string or a list of string with annotation keys. For example hasAnnotation: my-annotation renders the component only for entities that have defined metadata.annotations['my-annotation'].
  • Condition imported from the module of the plugin: Must be function name exported from the same module within the plugin. For example isMyPluginAvailable renders the component only if isMyPluginAvailable function returns true. The function must have the following signature: (e: Entity) ⇒ boolean.

The entity page supports adding more items to the context menu at the top right of the page. The exported component is a form of dialog wrapper component that accepts an open boolean property and an onClose event handler property as shown in the following example:

export type SimpleDialogProps = {
  open: boolean;
  onClose: () => void;
};

You can configure the context menu entry using the props configuration entry for the mount point. The title and icon properties sets the text and icon of the menu item. You can use any system icon or icon added through a dynamic plugin. The following is an example configuration:

# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-dynamic-plugin-package:
            appIcons:
              - name: dialogIcon
                importName: DialogIcon
            mountPoints:
              - mountPoint: entity.context.menu
                importName: SimpleDialog
                config:
                  props:
                    title: Open Simple Dialog
                    icon: dialogIcon

6.5.2. Adding application header

You can customize global headers by specifying configurations in the app-config.yaml file as shown in the following example:

# app-config.yaml
dynamicPlugins:
  frontend:
    my-plugin:  # The plugin package name
      mountPoints:
        - mountPoint: application/header # Adds the header as a global header
          importName: <header_component> # Specifies the component exported by the global header plugin
          config:
            position: above-main-content # Supported values: (`above-main-content`| above-sidebar`)
Note

To configure multiple global headers at different positions, add entries to the mountPoints field.

6.5.3. Adding application listeners

You can add application listeners using the application/listener mount point as shown in the following example:

# app-config.yaml
dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      mountPoints:
        - mountPoint: application/listener
          importName: <exported listener component>
Note

You can configure multiple application listeners by adding entries to the mountPoints field.

6.5.4. Adding application providers

You can add application providers using the application/provider mount point. You can use a mount point to configure a context provider as shown in the following example:

# app-config.yaml
dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      dynamicRoutes:
        - path: /<route>
          importName: Component # The component to load on the route
      mountPoints:
        - mountPoint: application/provider
          importName: <exported provider component>
Note
  1. You can configure multiple application providers by adding entries to the mountPoints field.
  2. The package_name key under dynamicPlugins.frontend must match the scalprum.name value in the package.json file of your plugin. This ensures your dynamic plugin loads correctly at runtime.

6.6. Customizing and extending entity tabs

You can customize and extend the set of tabs using the entityTabs configuration as follows:

# dynamic-plugins-config.yaml
plugins:
  - plugin: <plugin_path_or_url>
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          my-plugin: # The plugin package name
            entityTabs:
              # Specify a new tab
              - path: /new-path
                title: My New Tab
                mountPoint: entity.page.my-new-tab
              # Change an existing tab's title or mount point
              - path: /
                title: General
                mountPoint: entity.page.overview
                # Specify the sub-path route in the catalog where this tab is available
              - path: "/pr"
                title: "Changed Pull/Merge Requests" # Specify the title you want to display
                priority: 1
                # The base mount point name available on the tab. This name expands to create two mount points per tab, with` /context` and with `/cards`
                mountPoint: "entity.page.pull-requests"
              - path: "/"
                title: "Changed Overview"
                mountPoint: "entity.page.overview"
                # Specify the order of tabs. The tabs with higher priority values appear first
                priority: -6

You can configure dynamic front-end plugins to target the mount points exposed by the entityTabs configuration. The following are the default catalog entity routes in the default order:

Table 2. Input parameters

RouteTitleMount PointEntity Kind

/

Overview

entity.page.overview

Any

/topology

Topology

entity.page.topology

Any

/issues

Issues

entity.page.issues

Any

/pr

CPull/Merge Requests

entity.page.pull-requests

Any

/ci

CI

entity.page.ci`

VAny

/cd

CD

entity.page.cd

Any

/kubernetes

Kubernetes

entity.page.kubernetes

Any

/image-registry

Image Registry

entity.page.image-registry

Any

/monitoring

Monitoring

entity.page.monitoring

Any

/lighthouse

Lighthouse

entity.page.lighthouse

Any

/api

Api

entity.page.api

kind: Service or kind: Component

/dependencies

Dependencies

entity.page.dependencies

kind: Component

/docs

Docs

entity.page.docs

Any

/definition

Definition

entity.page.definition

kind: API

/system

Diagram

entity.page.diagram

kind: System

Note

Mount points within Catalog such as `entity.page.*` are rendered as tabs and become visible only if at least one plugin contributes to them, or if they can render static content.

6.7. Using a custom SignInPage component

In Red Hat Developer Hub (RHDH), the SignInPage component manages the authentication flow of the application. This component connects one or more authentication providers to the sign-in process. By default, Developer Hub uses a static SignInPage that supports all built-in authentication providers.

When you configure a custom SignInPage:

  • The system loads the specified importName component from your dynamic plugin.
  • The component returns a configured SignInPage that connects the desired authentication provider factories.
  • Only one signInPage is specified for the application at a time.
dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      signInPage:
        importName: CustomSignInPage
Note

The package_name specified under dynamicPlugins.frontend must match the scalprum.name value in the package.json file of your plugin to ensure the dynamic plugin loads correctly at runtime.

The module field is optional and allows specifying which set of assets must be accessed within the dynamic plugin. By default, the system uses the PluginRoot module.

6.8. Providing custom Scaffolder field extensions

The Scaffolder component in Red Hat Developer Hub (RHDH) enables users to create software components using templates through a guided wizard. You can extend the functionality of the Scaffolder by providing custom form fields as dynamic plugins using the scaffolderFieldExtensions configuration.

Custom field extensions allow you to add specialized form fields that capture domain-specific data during the scaffolding process, such as environment selectors, input validations, or repository checks.

When you configure custom scaffolder field extensions:

  • The dynamic plugin exposes the field extension component using createScaffolderFieldExtension.
  • Each field extension requires a unique importName for registration.
  • You register multiple field extensions by listing each in the configuration.
dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      scaffolderFieldExtensions:
        - importName: MyNewFieldExtension # References the exported scaffolder field extension component from your plugin
Note

The module field is optional and specifies which set of assets to access within the plugin. By default, the system uses the PluginRoot module, consistent with the scalprum.exposedModules key in the package.json file of your package.

6.9. Provide additional utility APIs

If a dynamic plugin exports the plugin object returned by createPlugin, it is supplied to the createApp API. All API factories exported by the plugin are automatically registered and available in the front-end application.

You can add an entry to the dynamicPlugins.frontend configuration when a dynamic plugin contains only API factories as shown in the following example:

# app-config.yaml
dynamicPlugins:
  frontend:
    my-dynamic-plugin-package-with-api-factories: {}

However, when the dynamic plugin is not exporting the plugin object, explicitly configure each API factory that must be registered with the createApp API using the apiFactories configuration as shown in the following example:

# app-config.yaml
dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      apiFactories:
        # (Optional): Specify the import name that references a `AnyApiFactory<{}>` implementation. (Defaults to `default` export)
        - importName: BarApi
          # (Optional): An argument which specifies the assets you want to access within the plugin. If not provided, the default module named `PluginRoot` is used
          module: CustomModule

The API factories initialized by the Developer Hub application shell are overridden by an API factory provided by a dynamic plugin by specifying the same API ref ID. A dynamic plugin can export AnyApiFactory<{}> to cater for some specific use case as shown in the following example:

export const customScmAuthApiFactory = createApiFactory({
  api: scmAuthApiRef,
  deps: { githubAuthApi: githubAuthApiRef },
  factory: ({ githubAuthApi }) =>
    ScmAuth.merge(
      ScmAuth.forGithub(githubAuthApi, { host: "github.someinstance.com" }),
      ScmAuth.forGithub(githubAuthApi, {
        host: "github.someotherinstance.com",
      }),
    ),
});

The corresponding configuration which overrides the default ScmAuth API factory that Developer Hub defaults to is as shown in the following example:

dynamicPlugins:
  frontend:
    my-plugin:  # The plugin package name
      apiFactories:
        - importName: customScmAuthApiFactory

6.10. Adding custom authentication provider settings

You can install new authentication providers from a dynamic plugin that either adds additional configuration support for an existing provider or adds a new authentication provider. These providers are listed in the user settings section under the Authentication Providers tab.

You can use the providerSettings configuration to add entries for an authentication provider from a dynamic plugin, as shown in the following example:

dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      providerSettings:
        # The title for the authentication provider shown above the user's profile image if available
        - title: My Custom Auth Provider
          # The description of the authentication provider
          description: Sign in using My Custom Auth Provider
          # The ID of the authentication provider as provided to the `createApiRef` API call.
          provider: core.auth.my-custom-auth-provider
Note

provider looks up the corresponding API factory for the authentication provider to connect the provider’s Sign In/Sign Out button.

6.11. Provide custom TechDocs addons

If a plugin provides multiple addons, each techdocsAddon entry specifies a unique importName corresponding to the addon. Front-end plugins exposes the TechDocs addon component using the techdocsAddons configuration as shown in the following example:

dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      techdocsAddons:
        - importName: ExampleAddon # The exported Addon component
          config:
            props: ... # (Optional): React props to pass to the addon

6.12. Customizing Red Hat Developer Hub theme

You can customize Developer Hub themes from a dynamic plugin with various configurations as shown in the following example:

import { lightTheme } from './lightTheme';
import { darkTheme } from './darkTheme';
import { UnifiedThemeProvider } from '@backstage/theme';
export const lightThemeProvider = ({ children }: { children: ReactNode }) => (
  <UnifiedThemeProvider theme={lightTheme} children={children} />
);
export const darkThemeProvider = ({ children }: { children: ReactNode }) => (
  <UnifiedThemeProvider theme={darkTheme} children={children} />
);

For more information about creating a custom theme, see creating a custom theme.

You can declare the theme using the themes configuration as shown in the following example:

dynamicPlugins:
  frontend:
    my-plugin: # The plugin package name
      themes:
          #  are `light` or `dark`. Using 'light' overrides the app-provided light theme
        - id: light
          title: Light
          variant: light
          icon: someIconReference
          importName: lightThemeProvider
          # The theme name displayed to the user on the *Settings* page. Using 'dark' overrides the app-provided dark theme
        - id: dark
          title: Dark
          variant: dark
          icon: someIconReference # A string reference to a system or app icon
          # The name of the exported theme provider function, the function signature should match `({ children }: { children: ReactNode }): React.JSX.Element`
          importName: darkThemeProvider

Legal Notice

Copyright © 2025 Red Hat, Inc.
The text of and illustrations in this document are licensed by Red Hat under a Creative Commons Attribution–Share Alike 3.0 Unported license ("CC-BY-SA"). An explanation of CC-BY-SA is available at http://creativecommons.org/licenses/by-sa/3.0/. In accordance with CC-BY-SA, if you distribute this document or an adaptation of it, you must provide the URL for the original version.
Red Hat, as the licensor of this document, waives the right to enforce, and agrees not to assert, Section 4d of CC-BY-SA to the fullest extent permitted by applicable law.
Red Hat, Red Hat Enterprise Linux, the Shadowman logo, the Red Hat logo, JBoss, OpenShift, Fedora, the Infinity logo, and RHCE are trademarks of Red Hat, Inc., registered in the United States and other countries.
Linux® is the registered trademark of Linus Torvalds in the United States and other countries.
Java® is a registered trademark of Oracle and/or its affiliates.
XFS® is a trademark of Silicon Graphics International Corp. or its subsidiaries in the United States and/or other countries.
MySQL® is a registered trademark of MySQL AB in the United States, the European Union and other countries.
Node.js® is an official trademark of Joyent. Red Hat is not formally related to or endorsed by the official Joyent Node.js open source or commercial project.
The OpenStack® Word Mark and OpenStack logo are either registered trademarks/service marks or trademarks/service marks of the OpenStack Foundation, in the United States and other countries and are used with the OpenStack Foundation's permission. We are not affiliated with, endorsed or sponsored by the OpenStack Foundation, or the OpenStack community.
All other trademarks are the property of their respective owners.
