Red Hat Developer Hub 1.9

Understand and visualize Red Hat Developer Hub project health using Scorecards

Setting up, configuring, and managing customizable Project Health Scorecards

Red Hat Customer Content Services

Abstract

When using Red Hat Developer Hub (RHDH), you can understand and visualize the health, security posture, and compliance of your software components so that you can centrally monitor Key Performance Indicators (KPIs) collected from third-party systems like GitHub and Jira without consulting multiple external tools.

1. Evaluate project health using Scorecards

1. Evaluate project health using Scorecards

1.1. Component health and compliance monitoring using Scorecards

Important

This section describes Developer Preview features in the Scorecard plugin. Developer Preview features are not supported by Red Hat in any way and are not functionally complete or production-ready. Do not use Developer Preview features for production or business-critical workloads. Developer Preview features provide early access to functionality in advance of possible inclusion in a Red Hat product offering. Customers can use these features to test functionality and provide feedback during the development process. Developer Preview features might not have any documentation, are subject to change or removal at any time, and have received limited testing. Red Hat might provide ways to submit feedback on Developer Preview features without an associated SLA.

For more information about the support scope of Red Hat Developer Preview features, see Developer Preview Support Scope.

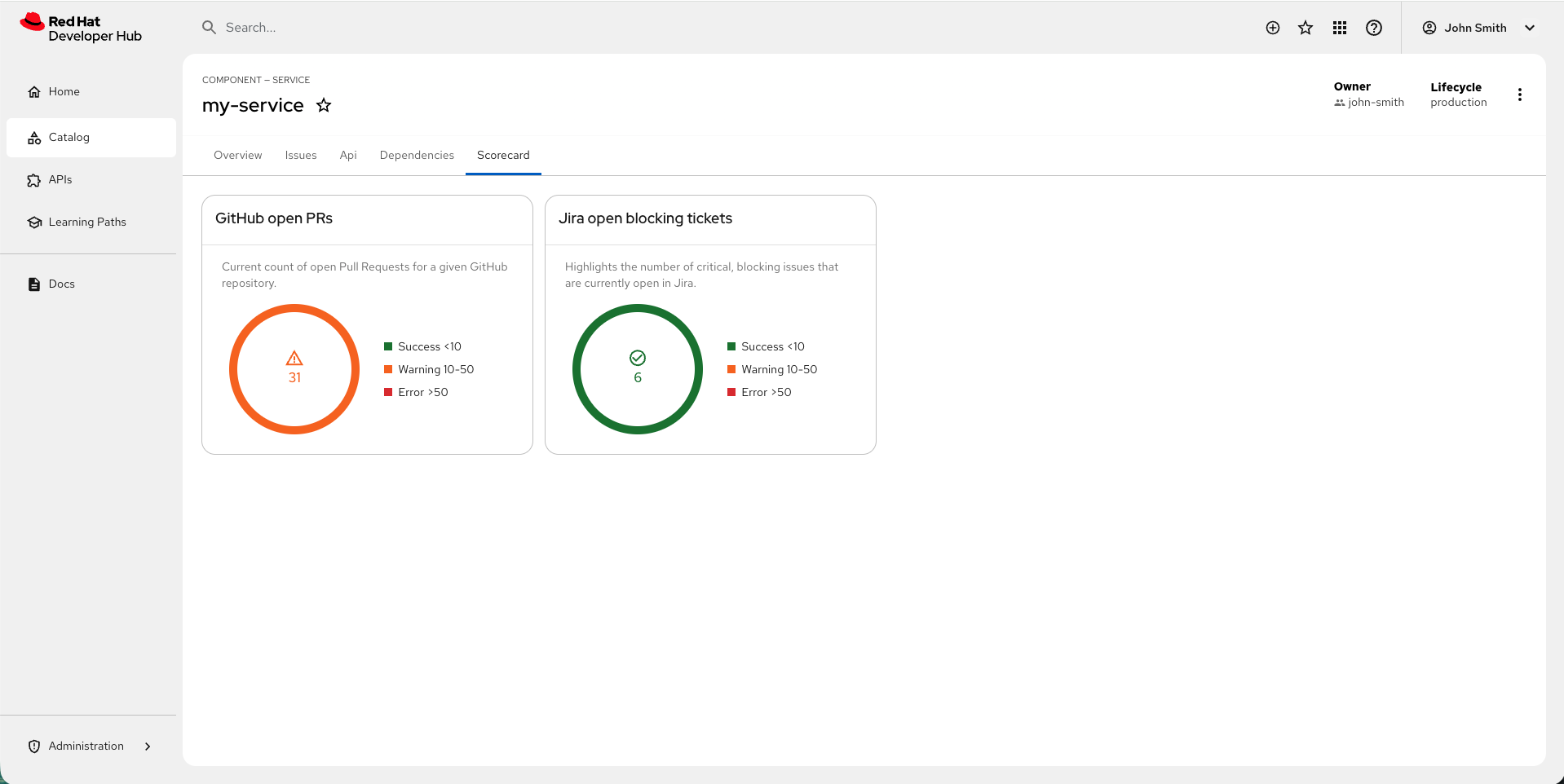

The Scorecard plugin centralizes Key Performance Indicators (KPIs) in Red Hat Developer Hub RHDH so you can monitor the health, security, and compliance of your services. By aggregating data in one interface, you can evaluate component quality without switching between external systems.

Use the Scorecard plugin to achieve the following goals:

Identify and prioritize risks: Use unified health data to make faster remediation decisions.
Maintain security standards: Automatically surface compliance gaps to enforce best practices.
Streamline workflows: Access all metrics in RHDH to reduce development overhead.
Standardize service quality: Define and measure consistent health criteria across the organization.

1.1.1. Supported Scorecard metrics providers

The Scorecard plugin collects data from third-party sources by using metric providers. Use the following table to identify the metrics available for each supported provider.

The following metric providers are supported:

Provider	Metric ID	Title	Description	Type
GitHub	`github.open_prs`	GitHub open PRs	Number of open pull requests in GitHub.	number
Jira	`jira.open_issues`	Jira open issues	Number of open issues in Jira.	number

1.2. Setting up Scorecards to monitor your Red Hat Developer Hub project health

1.2.1. Enabling Scorecards

To monitor component health and quality in RHDH, you must enable the Scorecard plugin in your configuration.

Prerequisites

You have installed your RHDH instance.
You have provisioned your custom dynamic plugins config map.

Procedure

Add the following configuration in your RHDH dynamic-plugin-config.yaml file:

plugins:
  - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-scorecard:bs_1.42.5__1.0.0!red-hat-developer-hub-backstage-plugin-scorecard
    disabled: false
    pluginConfig:
      dynamicPlugins:
        frontend:
          red-hat-developer-hub.backstage-plugin-scorecard:
            entityTabs:
              - path: '/scorecard'
                title: Scorecard
                mountPoint: entity.page.scorecard
            mountPoints:
              - mountPoint: entity.page.scorecard/cards
                importName: EntityScorecardContent
                config:
                  layout:
                    gridColumn: 1 / -1
                  if:
                    allOf:
                      - isKind: component
  - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-scorecard-backend:bs_1.42.5__1.0.0!red-hat-developer-hub-backstage-plugin-scorecard-backend
    disabled: false

1.2.2. Granting access to Scorecard metrics

As an administrator, you must grant users read access to Scorecard metrics by using Role-Based Access Control (RBAC). You can configure these permissions in the RBAC CSV file or the RBAC UI.

Prerequisite

You have enabled RBAC, have a policy administrator role in RHDH, and have added scorecard to plugins with permission.

Procedure

Grant the required permissions by using one of the following methods:

To use the RBAC CSV file, add the following policy to your CSV file to allow users to view metrics:

g, user:default/<YOUR_USERNAME>, role:default/scorecard-viewer
p, role:default/scorecard-viewer, scorecard.metric.read, read, allow
p, role:default/scorecard-viewer, catalog.entity.read, read, allow

See Permission policies reference.

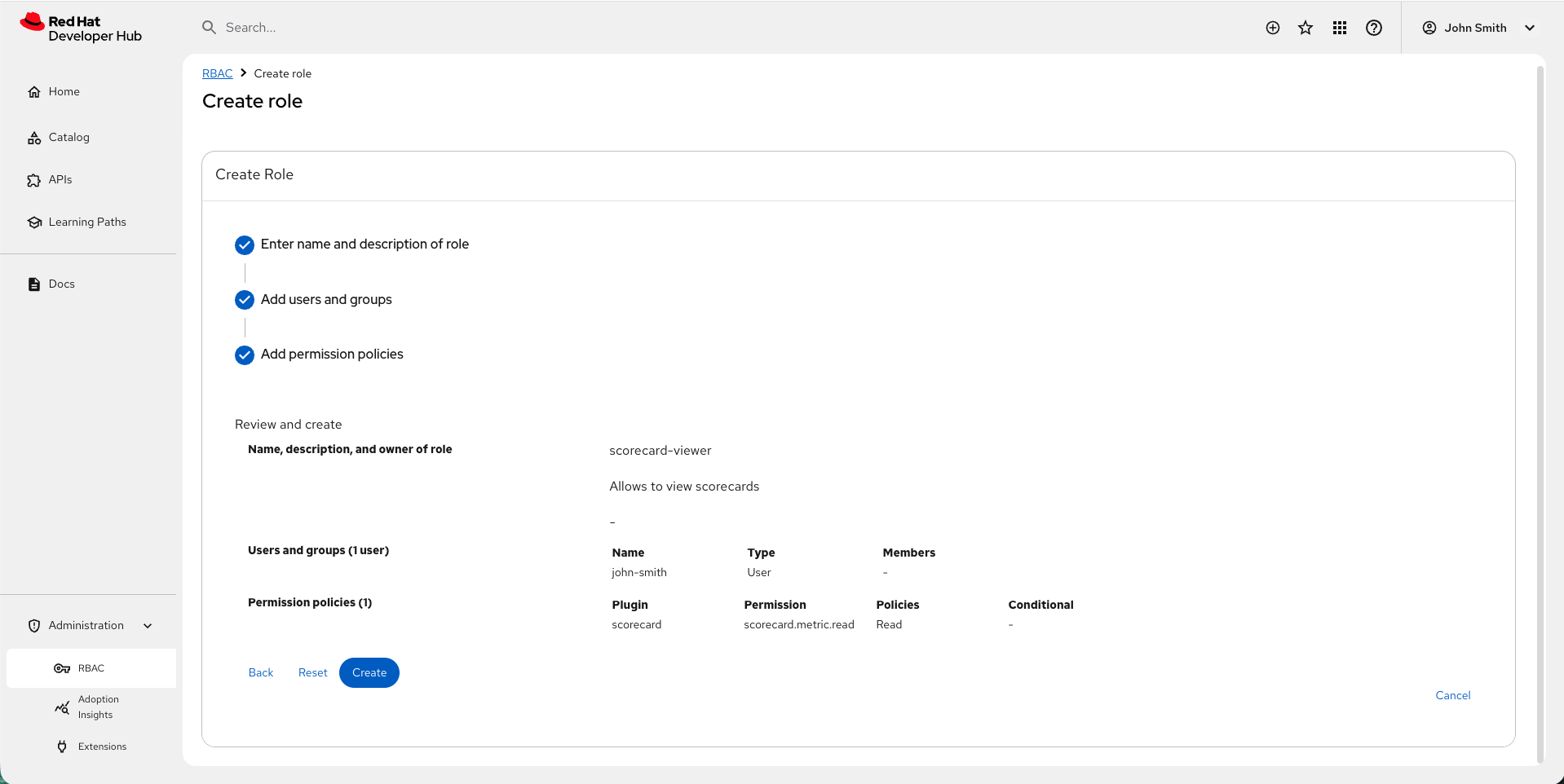

To use the RBAC Web UI, complete the following steps:
1. In the Red Hat Developer Hub menu, navigate to Administration > RBAC.
2. Select or create the Role that requires Scorecard access.
3. In the Add permission policies section, select Scorecard from the plugins dropdown.
4. Expand the Scorecard entry, select policy with the following details, and click Next:
  - Name: scorecard.metric.read
  - Permission: read

1.3. Installing and configuring Scorecards to view metrics in your Red Hat Developer Hub instance

You can install and configure the following Scorecards to display metrics and visual health status for software components in the RHDH catalog:

GitHub Scorecards
Jira Scorecards

1.3.1. Integrating GitHub health metrics using Scorecards

Configure the GitHub Scorecard plugin to display repository metrics in your RHDH catalog. This integration allows you to monitor component health and security risks directly from Red Hat Developer Hub.

You can grant RHDH access to the GitHub API by using a GitHub App or a GitHub token.

Important

For long-lived integrations or organizational access, you must use a GitHub App.

Prerequisites

You have installed your RHDH instance.
You have installed the Scorecard images.
Optional: If you choose the GitHub App option, you must have permissions in GitHub to create and manage a GitHub App.
You must have added a custom RHDH application configuration and have enough permissions to change it.

Procedure

To install and configure GitHub Scorecards in your RHDH instance, complete the following steps:

Grant GitHub API access: Create one of the following authentication methods:
- Configure using a GitHub App.
  1. Create a GitHub App with the required permissions (Read-only for Contents to allow reading repositories).
    Note
    You must install the GitHub App on the organization (or user account) that owns repositories you want access to, granting it the necessary repository access permissions.
    In the General > Clients secrets section, click Generate a new client secret.
    In the General > Private keys section, click Generate a private key.
    In the Install App tab, choose an account to install your GitHub App on.
    Record the App ID, Client ID, Client Secret, and Private key values.
  2. Add secrets to RHDH by adding the following key/value pairs to your RHDH secrets. You can use these secrets in the RHDH configuration files by using their respective environment variable names.
    GITHUB_INTEGRATION_APP_ID:: The saved App ID.
    GITHUB_INTEGRATION_CLIENT_ID:: The saved Client ID.
    GITHUB_INTEGRATION_CLIENT_SECRET:: The saved Client Secret.
    GITHUB_INTEGRATION_HOST_DOMAIN:: The GitHub host domain: github.com.
    GITHUB_INTEGRATION_ORGANIZATION:: Your GitHub organization name, such as <your_github_organization_name>.
    GITHUB_INTEGRATION_PRIVATE_KEY_FILE:: The saved Private key content.
  3. Configure the GitHub integration in your RHDH app-config.yaml file by adding the authentication details to the integrations.github section:
    integrations: github: - host: ${GITHUB_INTEGRATION_HOST_DOMAIN} apps: - appId: ${GITHUB_INTEGRATION_APP_ID} clientId: ${GITHUB_INTEGRATION_CLIENT_ID} clientSecret: ${GITHUB_INTEGRATION_CLIENT_SECRET} privateKey: | ${GITHUB_INTEGRATION_PRIVATE_KEY_FILE}
- Configure using a GitHub token.
  1. Create a GitHub token with the following permissions:
    Classic Personal Access Token (PAT): Select the repo scope for read/write access to private repositories.
    Fine-Grained Personal Access Token (PAT):
    Choose the specific repositories that RHDH must access.
    Grant the token a Read permission for Contents.
  2. Add the token to RHDH secrets by adding the following key/value pair to your RHDH secrets.
    where:
    GITHUB_TOKEN
    The generated GitHub token.
  3. Configure the GitHub integration in your RHDH app-config.yaml file by adding the authentication details to the integrations.github section:
    integrations: github: - host: github.com token: ${GITHUB_TOKEN}

Enable the GitHub Scorecard plugin: Add the GitHub Scorecard module to your RHDH dynamic-plugins-config.yaml file:

plugins:
  - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-scorecard-backend-module-github:bs_1.42.5__1.0.0!red-hat-developer-hub-backstage-plugin-scorecard-backend-module-github
    disabled: false

Annotate catalog entities: Link a component to the GitHub data source by editing the catalog-info.yaml file for your RHDH entity and adding the required annotations as shown in the following code:
```
apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: my-service
  annotations:
    # Required: GitHub project slug in format "owner/repository"
    github.com/project-slug: myorg/my-service
    # Required: Entity source location
    backstage.io/source-location: url:https://github.com/myorg/my-service
spec:
  type: service
  lifecycle: production
  owner: _<your_team_name>_
```
where:
annotations:github.com/project-slug
The GitHub repository format, for example, owner/repository.
annotations:backstage.io/source-location
The entity source location format, for example, url:https://github.com/owner/repository.
spec:owner
Your team name.
Note
You must add the team entity to the Catalog to ensure the provided permissions are applicable.
Ingest the catalog entity: Add the location of your catalog-info.yaml to the catalog.locations section in your RHDH app-config.yaml file:
```
catalog:
  locations:
    - type: url
      target: https://github.com/<owner>/<repository>/catalog-info.yaml
```

Optional: Customize thresholds: Define custom roles for the GitHub Open Pull Requests (github.open_prs) metric in your RHDH app-config.yaml file:

scorecard:
  plugins:
    github:
      open_prs:
        thresholds:
          rules:
            - key: success
              expression: '<10'
            - key: warning
              expression: '10-50'
            - key: error
              expression: '>50'

where:

scorecard:plugins:github:open_prs:thresholds: Lists the default threshold values for the GitHub open PRs metric.

1.3.2. Integrating Jira health metrics using Scorecards

Configure the Jira Scorecard plugin to display project tracking and delivery velocity data in your RHDH instance. This integration centralizes development status and helps evaluate component readiness.

The plugin supports Jira Cloud (API v3) and Jira Data Center (API v2).

Prerequisites

You must have administrator privileges for Jira and RHDH.
You have installed your RHDH instance.
You have installed the Scorecard images.
You must have added a custom RHDH application configuration and have sufficient permissions to change it.

Procedure

To install and configure Jira Scorecards in your RHDH instance, complete the following steps:

Note

You must use the proxy setup to ensure configuration compatibility if you also use the Roadie Jira Frontend Plugin.

Generate a Jira configuration token using one of the following methods, depending on your Jira product:
- Jira Cloud: Create a personal token. You must create a Base64-encoded string using the following plain text format: your-atlassian-email:your-jira-api-token.
```
echo -n 'your-atlassian-email:your-jira-api-token' | base64
```
- Jira datacenter: Create a Personal Access Token (PAT) in your Jira datacenter account.
Add Jira secrets: Define the following key/value pairs in your RHDH secrets:
JIRA_TOKEN
Enter your generated Jira token.
JIRA_BASE_URL
Enter your Jira base URL.
Configure the plugin: In your RHDH dynamic-plugins-config.yaml file, enable the plugin using either a direct setup or a proxy setup.
- Use a direct setup:
  1. Add the following code to your RHDH dynamic-plugins-config.yaml file:
    plugins: - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-scorecard-backend-module-jira:pr_1499__0.1.0!red-hat-developer-hub-backstage-plugin-scorecard-backend-module-jira disabled: false
  2. In your RHDH app-config.yaml file, add the following direct setup settings:
    jira: baseUrl: ${JIRA_BASE_URL} token: ${JIRA_TOKEN} product: _<jira_product>_
    where:
    baseUrl
    The base URL of your Jira instance, configured under ${JIRA_BASE_URL} in your RHDH secrets.
    token
    The Jira token (Base64 string for Cloud, PAT for Data Center), configured under ${JIRA_TOKEN} in your RHDH secrets.
    product
    Enter the supported product: cloud or datacenter.
- Use a proxy setup:
  1. In your RHDH dynamic-plugins-config.yaml file, add the following code:
    plugins: - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-scorecard-backend-module-jira:pr_1499__0.1.0!red-hat-developer-hub-backstage-plugin-scorecard-backend-module-jira disabled: false
  2. In your RHDH app-config.yaml file, add the following proxy settings:
    proxy: endpoints: '/jira/api': target: ${JIRA_BASE_URL} headers: Accept: 'application/json' Content-Type: 'application/json' X-Atlassian-Token: 'no-check' Authorization: ${JIRA_TOKEN} # Must be configured in your environment jira: proxyPath: /jira/api product: cloud # Change to 'datacenter' if using Jira Datacenter
    where:
    target
    The base URL of your Jira instance, configured under ${JIRA_BASE_URL} in your RHDH secrets.
    Authorization
    The Jira token, configured under ${JIRA_TOKEN} in your RHDH secrets. Set the token value as one of the following values:
    For Cloud: Basic YourCreatedCloudToken
    For Data Center: Bearer YourJiraToken
Annotate catalog entities: Add the Jira project key to the metadata.annotations section of the catalog-info.yaml file for your component:
```
apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: my-service
  annotations:
    jira/project-key: PROJECT
    jira/component: Component
    jira/label: UI
    jira/team: 9d3ea319-fb5b-4621-9dab-05fe502283e
    jira/custom-filter: 'reporter = "abc@xyz.com" AND resolution is not EMPTY'
spec:
  type: website
  lifecycle: experimental
  owner: guests
  system: examples
  providesApis: [example-grpc-api]
```
where:
jira/project-key
Required: Enter the Jira project key.
jira/component
Optional: Enter the Jira component name.
jira/label
Optional: Enter the Jira label.
jira/team
Optional: Enter the Jira team ID (not the team title).
jira/custom-filter
Optional: Enter a custom Jira Query Language (JQL) filter.
Ingest the catalog entity: Add the location of your catalog-info.yaml to the catalog.locations section in the RHDH app-config.yaml file:
```
catalog:
  locations:
    - type: url
      target: https://github.com/<owner>/<repository>/catalog-info.yaml
```
Optional: Define metric thresholds and filters: To customize health criteria or filter issues, add the Jira Open Issues metric thresholds to your RHDH app-config.yaml file:
```
scorecard:
  plugins:
    jira:
      open_issues:
        thresholds:
          rules:
            - key: success
              expression: '<10'
            - key: warning
              expression: '10-50'
            - key: error
              expression: '>50'
```
where:
scorecard:plugins:jira:open_issues:thresholds
Lists the default threshold values for the Jira Open Issues metric.
Optional: Define global or custom mandatory filters that entities can override by adding the following code to your RHDH app-config.yaml file:
```
scorecard:
  plugins:
    jira:
      open_issues:
        options:
          mandatoryFilter: Type = Task AND Resolution = Unresolved
          customFilter: priority in ("Critical", "Blocker")
```
where:
mandatoryFilter
Optional: Replaces the default filter (type = Bug and resolution = Unresolved).
customFilter
Optional: Specifies a global custom filter. The entity annotation jira/custom-filter overrides this value.

For more information about how to customize the threshold values, see Thresholds in Scorecard plugins.

1.4. Scorecard metric thresholds

The Scorecard plugin uses thresholds to translate raw metric values into health indicators: Success, Warning, or Error. By configuring these thresholds, you define the health criteria for your components.

1.4.1. Scorecard metric threshold categorization rules

A threshold defines conditions or expressions to assign metric values to specific visual categories.

To categorize metric values accurately, you must follow the following evaluation rules:

Sequential evaluation: The system processes threshold rules in the order you define them and applies only the first matching rule.
Restrictive ordering: You must sequence rules from the most restrictive range to the least restrictive range to verify that the system assigns categories correctly.
Supported categories: Use only the success, warning, and error keys to define thresholds.

1.4.2. Supported Scorecard threshold expression syntax

Metric threshold expressions use mathematical and logical operators to evaluate data. Use the following operators to define health criteria based on the metric data type.

Metric Type	Operator	Example Expression	Job Performed
Number	`>`, `>=`, `<`, `⇐`, `==`, `!=`	`>40`	The category applies if the value is greater than 40.
Number	`-` (Range)	`80-100`	The category applies if the value is between 80 and 100 (inclusive).
Boolean	`==`, `!=`	`==true`	The category applies if the value is exactly true.

1.4.3. Scorecard metric threshold precedence

Threshold rules follow a specific order of precedence. Higher-priority configurations override lower-priority settings, allowing you to define global defaults with entity-specific exceptions.

Priority	Configuration Method	Location	Job Performed
1 (Highest)	Entity Annotations	`catalog-info.yaml`	Overrides specific rules for a single component.
2 (Medium)	App Configuration	`app-config.yaml`	Sets global rules that override provider defaults.
3 (Lowest)	Provider Defaults	Backend Plugin Code	Baseline rules defined by the metric source.

1.4.4. Standardize Scorecard metric thresholds across components

You can define global thresholds in your RHDH app-config.yaml file to standardize health indicators across all components. Global configurations replace the default thresholds provided by a metric source.

If you omit a threshold category, such as success, the Scorecard plugin does not assign that category to the metric.

The following example defines thresholds for the jira.open_issues metric. These settings apply to all components using this metric unless an entity annotation overrides them.

scorecard:
  plugins:
    jira:
      open_issues:
        thresholds:
          rules:
            - key: success
              expression: '<10'    # fewer than 10 open issues
            - key: warning
              expression: '10-50'    # Between 10 and 50 open issues
            - key: error
              expression: '>50'      # More than 50 open issues

1.4.5. Override rules to configure entity-specific thresholds in Scorecards

Use annotations in the catalog-info.yaml file of a component to override global threshold rules. These annotations merge with and take precedence over the global rules defined in your RHDH app-config.yaml file.

Annotation structure

The annotation key must use the following format: scorecard.io/{providerId}.thresholds.rules.{thresholdKey}: '{expression}'

Element	Description	Example Annotation	Example Value
`{providerId}`	Unique identifier of the metric	`scorecard.io/jira.open_issues…`	`jira.open_issues`
`{thresholdKey}`	The overridden category	`…rules.warning`	`success`, `warning`, or `error`
`{expression}`	The new condition for the rule	`…: '>15'`	`>15`

Example: Override global Jira thresholds

In the following example, the component overrides the warning and error rules for the jira.open_issues metric. The success rule remains unchanged from the global configuration.

# catalog-info.yaml
apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: critical-production-service
  annotations:
    # Changes global 'warning' from '11-50' to '10-15'
    scorecard.io/jira.open_issues.thresholds.rules.warning: '10-15'
    # Changes global 'error' from '>50' to '>15'
    scorecard.io/jira.open_issues.thresholds.rules.error: '>15'
spec:
  type: service

1.4.6. Verify logical flow in Scorecard threshold rules

Threshold rule evaluation depends on the order of the rules. Because the system stops evaluation after a value matches the first applicable rule, you must sequence rules logically to ensure correct category assignments.

1.4.6.1. Evaluation order for rules

To ensure the system evaluates all values correctly, sequence rules from the most strict (smallest range) value to the least strict (largest range). If rules are ordered incorrectly, a broad rule can prevent the system from reaching stricter rules.

1.4.6.1.1. Problematic rule order example

If rules are ordered incorrectly, a less restrictive rule can prevent stricter rules from being evaluated:

warning: <50: Any value less than 50 triggers the warning rule and stops evaluation.
success: <10: This rule is not evaluated because all values less than 10 have already matched the preceding warning rule.

1.4.6.1.2. Correct ordering example

The following example demonstrates the correct sequence for successes, warnings, and errors:

rules:
  - key: success
    expression: '<10'     # Most restrictive: Only values below 10
  - key: warning
    expression: '10-50'   # Values between 10 and 50
  - key: error
    expression: '>50'     # Least restrictive: All values above 50

1.5. Monitoring component health and readiness with Scorecard metrics

View Scorecard metrics to evaluate the health and security of your software components directly in the RHDH catalog.

Prerequisites

You have installed your RHDH instance.
You have configured the GitHub or Jira Scorecard (or both) plugin.
You must have permissions to read the Scorecard metrics.

Procedure

In your RHDH navigation menu, go to Catalog.
Select the software component (catalog entity) that has Scorecard metrics configured.
On the component Service page, click the Scorecard tab.
Select a metric tile to view detailed data.

Legal Notice

The text of and illustrations in this document are licensed by Red Hat under a Creative Commons Attribution–Share Alike 3.0 Unported license ("CC-BY-SA"). An explanation of CC-BY-SA is available at http://creativecommons.org/licenses/by-sa/3.0/. In accordance with CC-BY-SA, if you distribute this document or an adaptation of it, you must provide the URL for the original version.

Red Hat, as the licensor of this document, waives the right to enforce, and agrees not to assert, Section 4d of CC-BY-SA to the fullest extent permitted by applicable law.

Red Hat, Red Hat Enterprise Linux, the Shadowman logo, the Red Hat logo, JBoss, OpenShift, Fedora, the Infinity logo, and RHCE are trademarks of Red Hat, Inc., registered in the United States and other countries.

Linux® is the registered trademark of Linus Torvalds in the United States and other countries.

Java® is a registered trademark of Oracle and/or its affiliates.

XFS® is a trademark of Silicon Graphics International Corp. or its subsidiaries in the United States and/or other countries.

MySQL® is a registered trademark of MySQL AB in the United States, the European Union and other countries.

Node.js® is an official trademark of Joyent. Red Hat is not formally related to or endorsed by the official Joyent Node.js open source or commercial project.

The OpenStack® Word Mark and OpenStack logo are either registered trademarks/service marks or trademarks/service marks of the OpenStack Foundation, in the United States and other countries and are used with the OpenStack Foundation's permission. We are not affiliated with, endorsed or sponsored by the OpenStack Foundation, or the OpenStack community.

All other trademarks are the property of their respective owners.
