Red Hat Developer Hub 1.9

Monitoring and logging

Tracking performance and capturing insights with monitoring and logging tools in Red Hat Developer Hub

Red Hat Customer Content Services

Abstract

As a Red Hat Developer Hub (RHDH) Operations or Project Manager, you can monitor performance and gather insights by using the Red Hat Developer Hub monitoring and logging tools.

1. Log levels
- 1.1. Configure the log level with the Red Hat Developer Hub Operator
- 1.2. Configure the log level with the Red Hat Developer Hub Helm chart
2. Enable observability for Red Hat Developer Hub on OpenShift Container Platform
- 2.1. Enable metrics monitoring in a Red Hat Developer Hub Operator installation on an OpenShift Container Platform cluster
- 2.2. Enable metrics monitoring in a Helm chart installation on an OpenShift Container Platform cluster
3. Monitoring and logging Red Hat Developer Hub on Amazon Web Services (AWS)
- 3.1. Monitor with Amazon Prometheus
- 3.2. Log with Amazon CloudWatch
4. Monitor and log with Azure Kubernetes Service (AKS) in Red Hat Developer Hub

Monitor performance and gather insights from Developer Hub by configuring log levels, enabling metrics on OpenShift Container Platform, and integrating with cloud monitoring services on AWS and AKS.

1. Log levels

Control the amount and type of information that Developer Hub writes to its logs by configuring the LOG_LEVEL environment variable using the Operator or Helm chart.

1.1. Configure the log level with the Red Hat Developer Hub Operator

Configure the application log level through the LOG_LEVEL environment variable by using the Red Hat Developer Hub Operator to control the minimum severity level of events that your application logs.

Prerequisites

You have access to the Backstage custom resource (CR) used to deploy the application.

Procedure

Include the environment variable LOG_LEVEL in your Backstage CR. For example:

spec:
  # Other fields omitted
  application:
    extraEnvs:
      envs:
        - name: LOG_LEVEL
          value: debug

You can use any of the values in the following table.

Table 1. LOG_LEVEL values in order of increasing severity

Value	Description
`debug`	Detailed information, typically useful only when troubleshooting.
`info`	General information about the operation of the application. This is the default level.
`warn`	Potential issues or situations that might require attention.
`error`	Errors that occurred during the operation but are not critical.
`critical`	Unrecoverable errors that must be addressed immediately to restore functionality.

1.2. Configure the log level with the Red Hat Developer Hub Helm chart

Configure the application log level through the LOG_LEVEL environment variable by using the Red Hat Developer Hub Helm chart to control the minimum severity level of events that your application logs.

Prerequisites

You have installed Red Hat Developer Hub on OpenShift Container Platform using the Helm chart.

Procedure

Add LOG_LEVEL to your Helm chart values.yaml file. For example:

upstream:
  backstage:
    # --- Truncated ---
    extraEnvVars:
      - name: LOG_LEVEL
        value: debug

You can use any of the values in the following table.

Table 2. LOG_LEVEL values in order of increasing severity

Value	Description
`debug`	Detailed information, typically useful only when troubleshooting.
`info`	General information about the operation of the application. This is the default level.
`warn`	Potential issues or situations that might require attention.
`error`	Errors that occurred during the operation but are not critical.
`critical`	Unrecoverable errors that must be addressed immediately to restore functionality.

2. Enable observability for Red Hat Developer Hub on OpenShift Container Platform

Enable metrics monitoring for Developer Hub on OpenShift Container Platform by creating a ServiceMonitor custom resource (CR) to scrape metrics from the /metrics service endpoint.

2.1. Enable metrics monitoring in a Red Hat Developer Hub Operator installation on an OpenShift Container Platform cluster

Enable and view metrics for an Operator-installed Red Hat Developer Hub instance from the OpenShift Container Platform web console by setting the spec.monitoring.enabled field in your custom resource (CR).

Prerequisites

Your OpenShift Container Platform cluster has monitoring for user-defined projects enabled.
You have installed Red Hat Developer Hub on OpenShift Container Platform using the Red Hat Developer Hub Operator.
You have installed the OpenShift CLI (oc).

Procedure

Use the OpenShift CLI (oc) to edit your existing Red Hat Developer Hub CR.
```
$ oc edit Backstage <instance_name>
```
In the CR, locate the spec field and add the monitoring configuration block.
```
spec:
  monitoring:
    enabled: true
```
Save the RHDH CR. The RHDH Operator detects the configuration and automatically creates the corresponding ServiceMonitor custom resource (CR).
Note
The Operator automatically configures the ServiceMonitor with the correct labels (app.kubernetes.io/instance and app.kubernetes.io/name) that match your Backstage CR. The ServiceMonitor will be named metrics-<cr_name>. No additional label configuration is required.

Verification

From the OpenShift Container Platform web console, select the Observe view.
Click the Metrics tab to view metrics for Red Hat Developer Hub pods.
From the OpenShift Container Platform web console, click Project > Services and verify the labels for backstage-developer-hub.

2.2. Enable metrics monitoring in a Helm chart installation on an OpenShift Container Platform cluster

Enable and view metrics for a Red Hat Developer Hub Helm deployment from the OpenShift Container Platform web console by configuring metrics monitoring during a chart upgrade.

Prerequisites

Your OpenShift Container Platform cluster has monitoring for user-defined projects enabled.
You have installed Red Hat Developer Hub on OpenShift Container Platform using the Helm chart.

Procedure

From the OpenShift Container Platform web console, select the Topology view.

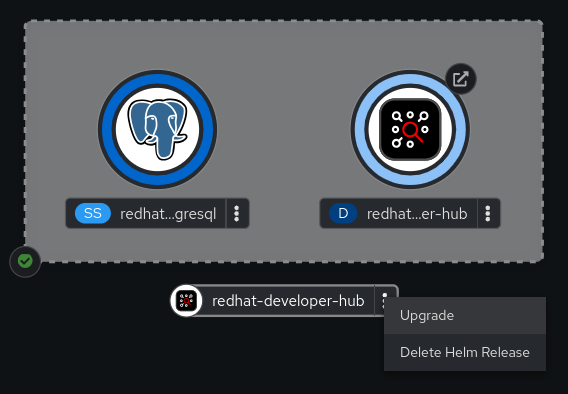

Click the overflow menu of the Red Hat Developer Hub Helm chart, and select Upgrade.

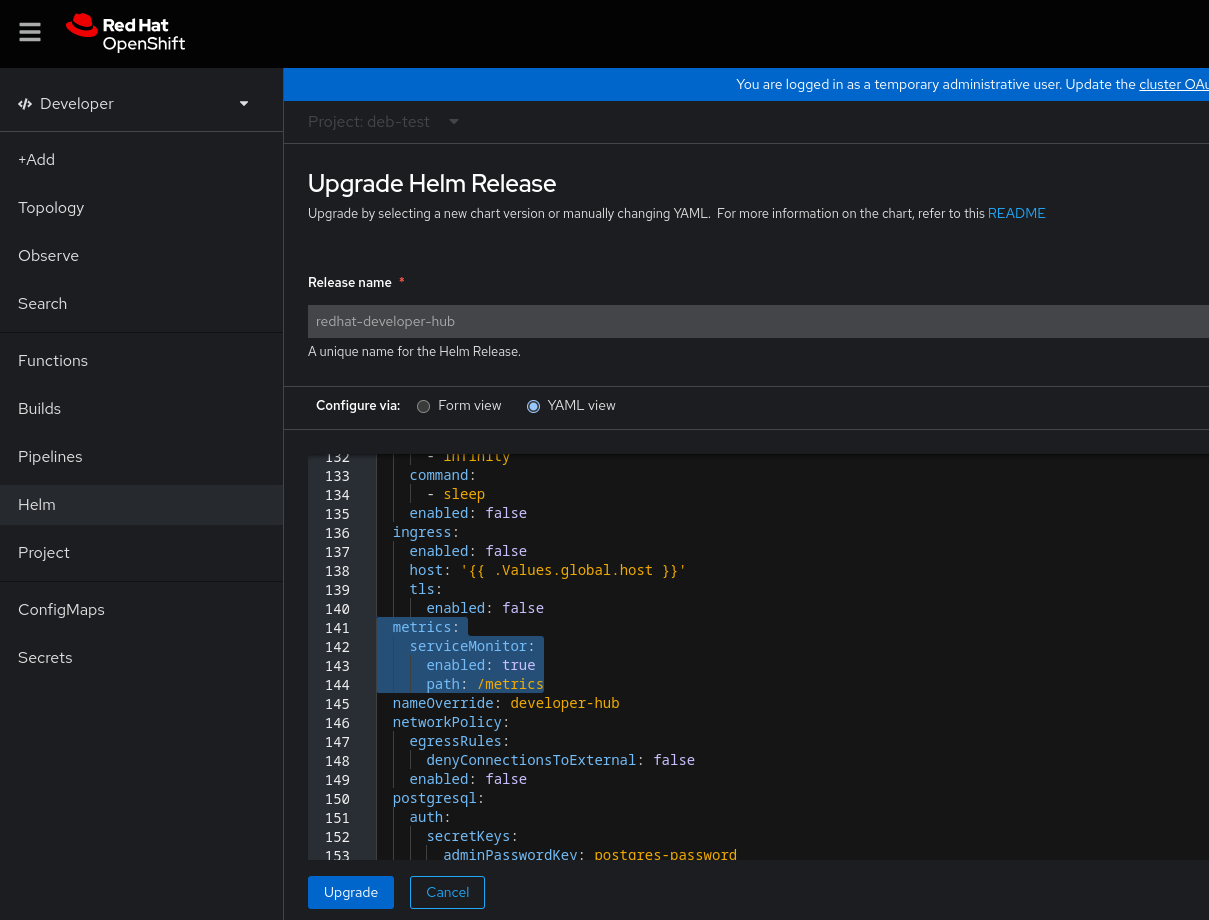

On the Upgrade Helm Release page, select the YAML view option in Configure via, then configure the metrics section in the YAML, as shown in the following example:
```
upstream:
# ...
  metrics:
    serviceMonitor:
      enabled: true
      path: /metrics
      port: http-metrics
# ...
```
Click Upgrade.

Verification

From the OpenShift Container Platform web console, select the Observe view.
Click the Metrics tab to view metrics for Red Hat Developer Hub pods.

Additional resources

Configuring and using the monitoring stack in Red Hat OpenShift Container Platform

3. Monitoring and logging Red Hat Developer Hub on Amazon Web Services (AWS)

Configure Developer Hub to use Amazon Prometheus for metrics monitoring and Amazon CloudWatch for logging when hosting on Amazon Web Services (AWS) infrastructure.

3.1. Monitor with Amazon Prometheus

Configure Developer Hub to use Amazon Prometheus for metrics monitoring by setting the required pod annotations.

3.1.1. Configure annotations for monitoring with Amazon Prometheus by using the Red Hat Developer Hub Operator

Configure the required pod annotations by using the Red Hat Developer Hub Operator to enable monitoring with Amazon Prometheus.

Prerequisites

You have configured Prometheus for your Elastic Kubernetes Service (EKS) clusters.
You have created an Amazon managed service for the Prometheus workspace.
You have configured Prometheus to import the Developer Hub metrics.
You have ingested Prometheus metrics into the created workspace.

Procedure

As an administrator of the Red Hat Developer Hub Operator, edit the default configuration to add Prometheus annotations as follows:
```
# Update OPERATOR_NS accordingly
$ OPERATOR_NS=rhdh-operator
$ kubectl edit configmap backstage-default-config -n "${OPERATOR_NS}"
```

Find the deployment.yaml key in the config map and add the annotations to the spec.template.metadata.annotations field as follows:

deployment.yaml: |-
  apiVersion: apps/v1
  kind: Deployment
  # --- truncated ---
  spec:
    template:
      # --- truncated ---
      metadata:
        labels:
         rhdh.redhat.com/app:  # placeholder for 'backstage-<cr_name>'
        # --- truncated ---
        annotations:
          prometheus.io/scrape: 'true'
          prometheus.io/path: '/metrics'
          prometheus.io/port: '9464'
          prometheus.io/scheme: 'http'
  # --- truncated ---

Save your changes.

Verification

To verify if the scraping works:

Use kubectl to port-forward the Prometheus console to your local machine as follows:
```
$ kubectl --namespace=prometheus port-forward deploy/prometheus-server 9090
```
Open your web browser and navigate to http://localhost:9090 to access the Prometheus console.
Monitor relevant metrics, such as process_cpu_user_seconds_total.

Additional resources

3.1.2. Configure annotations for monitoring with Amazon Prometheus by using the Red Hat Developer Hub Helm chart

Configure the required pod annotations by using the Red Hat Developer Hub Helm chart to enable monitoring with Amazon Prometheus.

Prerequisites

You have configured Prometheus for your Elastic Kubernetes Service (EKS) clusters.
You have created an Amazon managed service for the Prometheus workspace.
You have configured Prometheus to import the Developer Hub metrics.
You have ingested Prometheus metrics into the created workspace.

Procedure

To annotate the backstage pod for monitoring, update your values.yaml file as follows:

upstream:
  backstage:
    # --- TRUNCATED ---
    podAnnotations:
      prometheus.io/scrape: 'true'
      prometheus.io/path: '/metrics'
      prometheus.io/port: '9464'
      prometheus.io/scheme: 'http'

Verification

To verify if the scraping works:

Use kubectl to port-forward the Prometheus console to your local machine as follows:
```
$ kubectl --namespace=prometheus port-forward deploy/prometheus-server 9090
```
Open your web browser and navigate to http://localhost:9090 to access the Prometheus console.
Monitor relevant metrics, such as process_cpu_user_seconds_total.

Additional resources

3.2. Log with Amazon CloudWatch

Retrieve and query Developer Hub logs by using Amazon CloudWatch Container Insights and the WinstonJS logging library.

3.2.1. Retrieve logs from Amazon CloudWatch

Retrieve and query logs from your Developer Hub instance by using Amazon CloudWatch Container Insights and Logs Insights.

Prerequisites

CloudWatch Container Insights is used to capture logs and metrics for Amazon Elastic Kubernetes Service. For more information, see Logging for Amazon Elastic Kubernetes Service documentation.
To capture the logs and metrics, install the Amazon CloudWatch Observability EKS add-on in your cluster. Following the setup of Container Insights, you can access container logs using Logs Insights or Live Tail views.
CloudWatch names the log group where all container logs are consolidated in the following manner:
```
/aws/containerinsights/<cluster_name>/application
```

Procedure

To retrieve logs from the Developer Hub instance, run a query such as:

fields @timestamp, @message, kubernetes.container_name
| filter kubernetes.container_name in ["install-dynamic-plugins", "backstage-backend"]

4. Monitor and log with Azure Kubernetes Service (AKS) in Red Hat Developer Hub

Monitor resource utilization, diagnose issues, and collect logs for Developer Hub on Azure Kubernetes Service (AKS) by using Managed Prometheus Monitoring and Azure Monitor.

4.1. Enable Azure Monitor metrics

Enable managed Prometheus monitoring for your Azure Kubernetes Service (AKS) cluster to collect metrics and monitor Developer Hub performance through Azure Monitor.

Prerequisites

You have an AKS cluster.
You have the Azure CLI installed.

Procedure

To enable managed Prometheus monitoring, use the --enable-azure-monitor-metrics option with either the az aks create or az aks update command:
```
$ az aks create/update --resource-group <your_resource_group> --name <your_cluster> --enable-azure-monitor-metrics
```
This command installs the metrics add-on, which gathers Prometheus metrics.

Verification

In the Azure portal, navigate to Monitoring → Insights to view the monitoring results. For more information, see Monitor Azure resources with Azure Monitor.

Additional resources

4.2. Configure annotations for AKS monitoring by using the Operator

Configure the pod annotations for monitoring Developer Hub specific metrics on Azure Kubernetes Service (AKS) by using the Red Hat Developer Hub Operator.

Procedure

As an administrator of the Operator, edit the default configuration to add Prometheus annotations:

# Update OPERATOR_NS accordingly
OPERATOR_NS=rhdh-operator
$ kubectl edit configmap backstage-default-config -n "${OPERATOR_NS}"

Find the deployment.yaml key in the ConfigMap and add the annotations to the spec.template.metadata.annotations field:

deployment.yaml: |-
  apiVersion: apps/v1
  kind: Deployment
  # --- truncated ---
  spec:
    template:
      # --- truncated ---
      metadata:
        labels:
         rhdh.redhat.com/app:  # placeholder for 'backstage-<cr_name>'
        # --- truncated ---
        annotations:
          prometheus.io/scrape: 'true'
          prometheus.io/path: '/metrics'
          prometheus.io/port: '9464'
          prometheus.io/scheme: 'http'
  # --- truncated ---

Save your changes.

Verification

Navigate to the corresponding Azure Monitor Workspace and view the metrics under Monitoring → Metrics.

4.3. Configure annotations for AKS monitoring by using the Helm chart

Configure the pod annotations for monitoring Developer Hub specific metrics on Azure Kubernetes Service (AKS) by using the Helm chart.

Procedure

Update your values.yaml file to annotate the backstage pod for monitoring:

upstream:
  backstage:
    # --- TRUNCATED ---
    podAnnotations:
      prometheus.io/scrape: 'true'
      prometheus.io/path: '/metrics'
      prometheus.io/port: '9464'
      prometheus.io/scheme: 'http'

Verification

Navigate to the corresponding Azure Monitor Workspace and view the metrics under Monitoring → Metrics.

4.4. View live logs with Azure Kubernetes Service (AKS)

Access live data logs generated by Kubernetes objects for your Developer Hub instance on AKS.

Prerequisites

You have deployed Developer Hub on AKS.

For more information, see Installing Red Hat Developer Hub on Microsoft Azure Kubernetes Service.

Procedure

Navigate to the Azure Portal.
Search for the resource group <your_resource_group> and locate your AKS cluster <your_cluster>.
Select Kubernetes resources → Workloads from the menu.
Select the <your_rhdh_cr>-developer-hub (in case of Helm Chart installation) or <your_rhdh_cr>-backstage (in case of Operator-backed installation) deployment.
Click Live Logs in the left menu.
Select the pod.
Note
There must be only single pod.

Verification

Live log data is collected and displayed.

4.5. View real-time log data with Azure Kubernetes Service (AKS)

View real-time log data from the Container Engine for your Developer Hub instance on AKS.

Prerequisites

You have deployed Developer Hub on AKS.

For more information, see Installing Red Hat Developer Hub on Microsoft Azure Kubernetes Service.

Procedure

Navigate to the Azure Portal.
Search for the resource group <your_resource_group> and locate your AKS cluster <your_cluster>.
Select Monitoring → Insights from the menu.
Go to the Containers tab.
Find the backend-backstage container and click it to view real-time log data as it is generated by the Container Engine.

Legal Notice

The text of and illustrations in this document are licensed by Red Hat under a Creative Commons Attribution–Share Alike 3.0 Unported license ("CC-BY-SA"). An explanation of CC-BY-SA is available at http://creativecommons.org/licenses/by-sa/3.0/. In accordance with CC-BY-SA, if you distribute this document or an adaptation of it, you must provide the URL for the original version.

Red Hat, as the licensor of this document, waives the right to enforce, and agrees not to assert, Section 4d of CC-BY-SA to the fullest extent permitted by applicable law.

Red Hat, Red Hat Enterprise Linux, the Shadowman logo, the Red Hat logo, JBoss, OpenShift, Fedora, the Infinity logo, and RHCE are trademarks of Red Hat, Inc., registered in the United States and other countries.

Linux® is the registered trademark of Linus Torvalds in the United States and other countries.

Java® is a registered trademark of Oracle and/or its affiliates.

XFS® is a trademark of Silicon Graphics International Corp. or its subsidiaries in the United States and/or other countries.

MySQL® is a registered trademark of MySQL AB in the United States, the European Union and other countries.

Node.js® is an official trademark of Joyent. Red Hat is not formally related to or endorsed by the official Joyent Node.js open source or commercial project.

The OpenStack® Word Mark and OpenStack logo are either registered trademarks/service marks or trademarks/service marks of the OpenStack Foundation, in the United States and other countries and are used with the OpenStack Foundation's permission. We are not affiliated with, endorsed or sponsored by the OpenStack Foundation, or the OpenStack community.

All other trademarks are the property of their respective owners.
