1. Create the Lightspeed Core Service (LCS) ConfigMap to store the service configuration:

   1. In the OpenShift Container Platform web console, navigate to your RHDH instance and select the ConfigMaps tab.
   2. Click Create ConfigMaps.

   3. Select YAML view and edit the file using the following structure. This example demonstrates the configuration for the LCS ConfigMap, typically named lightspeed-stack, which connects to the Llama Stack service locally on port 8321:

      kind: ConfigMap
      apiVersion: v1
      metadata:
        name: lightspeed-stack
      data:
        lightspeed-stack.yaml: |
          name: Lightspeed Core Service (LCS)
          service:
            host: 0.0.0.0
          # Use ${LIGHTSPEED_SERVICE_PORT} if you are not running the Service on port `8080`
          # port: ${LIGHTSPEED_SERVICE_PORT}
            auth_enabled: false
            workers: 1
            color_log: true
            access_log: true
          llama_stack:
            use_as_library_client: false
            url: http://localhost:8321
          user_data_collection:
            feedback_enabled: true
            feedback_storage: "/tmp/data/feedback"
            transcripts_enabled: true
            transcripts_storage: "/tmp/data/transcripts"
          authentication:
            module: "noop"
          conversation_cache:
            type: "sqlite"
            sqlite:
              db_path: "/tmp/data/conversations/lcs_cache.db"

      Important

      LCS uses Llama Stack expansion syntax for environment variables. To make sure the service correctly parses variables in the lightspeed-stack.yaml file, you must use the ${env.VAR} format. Variable names are case-sensitive and must be uppercase. The syntax ${env.var} is not supported. For example:

      model_config:
        api_key: ${env.VAR}

   4. Click Create.

2. Create the Developer Lightspeed for RHDH ConfigMap (lightspeed-app-config) for plugin configurations:

   1. In the OpenShift Container Platform web console, navigate to your RHDH instance and select the ConfigMaps tab.
   2. Click Create ConfigMap.

   3. Select the YAML view option and add the following configuration:

      kind: ConfigMap
      apiVersion: v1
      metadata:
        name: lightspeed-app-config
        namespace: <__namespace__> # Enter your RHDH instance namespace
      data:
        app-config.yaml: |-
          backend:
            csp:
              upgrade-insecure-requests: false
            img-src:
              - "'self'"
              - "data:"
              - https://img.freepik.com
              - https://cdn.dribbble.com
              - https://avatars.githubusercontent.com # This is to load GitHub avatars in the UI
            script-src:
              - "'self'"
              - "'unsafe-eval'"
              - https://cdn.jsdelivr.net

          lightspeed:
            # OPTIONAL: Custom users prompts displayed to users
            # If not provided, the plugin uses built-in default prompts
            prompts:
              - title: Getting Started with Red Hat Developer Hub
                message: Can you guide me through the first steps to start using {product-short} as a developer, like exploring the Software Catalog and adding my service?

            # OPTIONAL: Port for lightspeed service (default: 8080)
            # servicePort: ${LIGHTSPEED_SERVICE_PORT}

            # OPTIONAL: Override default RHDH system prompt
            # systemPrompt: "You are a helpful assistant focused on Red Hat Developer Hub development."

   4. Click Create.

3. Create Llama Stack Secret file (llama-stack-secrets) for LLM provider credentials:

   Important

   Red Hat Developer Hub 1.9 configures the Llama Stack image to use the vLLM provider exclusively. The vLLM provider supports the OpenAI API schema but does not support connecting directly to the official OpenAI service (api.openai.com). Do not use the official OpenAI API URL or token with vLLM in this release. Attempting this might result in errors or improper responses. Native OpenAI provider support is planned for future releases.

   1. In the OpenShift Container Platform web console, navigate to Secrets.
   2. Click Create → Key/value secret.

   3. Select the YAML view option and add the following structure:

      apiVersion: v1
      kind: Secret
      metadata:
        name: llama-stack-secrets
      type: Opaque
      stringData:
        ENABLE_VLLM: "true"
        ENABLE_VERTEX_AI: ""
        ENABLE_OPENAI: ""
        ENABLE_OLLAMA: ""
        VLLM_URL: "_<api_endpoint>_"
        VLLM_API_KEY: "_<api_key>_"
        VLLM_MAX_TOKENS: ""
        VLLM_TLS_VERIFY: ""
        OPENAI_API_KEY: ""
        VERTEX_AI_PROJECT: ""
        VERTEX_AI_LOCATION: ""
        GOOGLE_APPLICATION_CREDENTIALS: ""
        OLLAMA_URL: ""
        SAFETY_MODEL: "llama-guard3:8b"
        SAFETY_URL: "http://localhost:#####/v1"
        SAFETY_API_KEY: ""

      where:

      ENABLE_VLLM

      Enables the vLLM provider. Set to true to activate.

      ENABLE_OPENAI

      Enables the OpenAI provider. Set to true to activate.

      ENABLE_VERTEX_AI

      Enables the Vertex AI provider. Set to true to activate.

      ENABLE_OLLAMA

      Enables the Ollama provider. Set to true to activate.

1. Click Save. The Pods are automatically restarted.

   • For a Helm-installed RHDH instance (Update the Helm chart):

2. Add your dynamic plugins configuration in the global.dynamic property.

   global:
     dynamic:
       plugins:
         - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-lightspeed:bs_1.45.3__1.2.3
           pluginConfig:
             dynamicPlugins:
               frontend:
                 red-hat-developer-hub.backstage-plugin-lightspeed:
                   translationResources:
                     - importName: lightspeedTranslations
                       module: Alpha
                       ref: lightspeedTranslationRef
                   dynamicRoutes:
                     - path: /lightspeed
                       importName: LightspeedPage
                   mountPoints:
                     - mountPoint: application/listener
                       importName: LightspeedFAB
                     - mountPoint: application/provider
                       importName: LightspeedDrawerProvider
                     - mountPoint: application/internal/drawer-state
                       importName: LightspeedDrawerStateExposer
                       config:
                         id: lightspeed
                     - mountPoint: application/internal/drawer-content
                       importName: LightspeedChatContainer
                       config:
                         id: lightspeed
                         priority: 100
         - package: oci://ghcr.io/redhat-developer/rhdh-plugin-export-overlays/red-hat-developer-hub-backstage-plugin-lightspeed-backend:bs_1.45.3__1.2.3

3. Add your Developer Lightspeed for RHDH custom app config file to extraAppConfig:

       extraAppConfig:
         - configMapRef: lightspeed-app-config
           filename: app-config.yaml

4. Add the Llama Stack Secret file to extraEnvVarsSecrets:

       extraEnvVarsSecrets:
         - llama-stack-secrets

5. Update the extraVolumes section to include the LCS ConfigMap (lightspeed-stack), shared storage, and RAG data volume:

       extraVolumes:
         - configMap:
             name: lightspeed-stack
           name: lightspeed-stack
         - emptyDir: {}
           name: shared-storage
         - emptyDir: {}
           name: rag-data-volume

6. Update the initContainers section (if supported by your Helm chart structure) to initialize RAG data.

     initContainers:
         - name: init-rag-data
           image: 'quay.io/redhat-ai-dev/rag-content:release-1.9-lcs'
           command:
             - "sh"
             - "-c"
             - "echo 'Copying RAG data...'; cp -r /rag/vector_db/rhdh_product_docs /data/ && cp -r /rag/embeddings_model /data/ && echo 'Copy complete.'"
           volumeMounts:
             - mountPath: /data
               name: rag-data-volume

7. Add the Llama Stack and LCS container definitions to extraContainers.

   Note

   If you have Road-Core Service installed from the previous Red Hat Developer Lightspeed for Red Hat Developer Hub configuration, you must replace the older single container configuration found in source with the two sidecars.

       extraContainers:
         # Llama Stack Container
         - envFrom:
             - secretRef:
                 name: llama-stack-secrets
           image: 'quay.io/redhat-ai-dev/llama-stack:0.1.4'
           name: llama-stack
           volumeMounts:
             - mountPath: /app-root/.llama
               name: shared-storage
             - mountPath: /rag-content/embeddings_model
               name: rag-data-volume
               subPath: embeddings_model
             - mountPath: /rag-content/vector_db/rhdh_product_docs
               name: rag-data-volume
               subPath: rhdh_product_docs
         # Lightspeed Core Service Container
         - image: 'quay.io/lightspeed-core/lightspeed-stack:0.4.0'
           name: lightspeed-core
           volumeMounts:
             - mountPath: /app-root/lightspeed-stack.yaml
               name: lightspeed-stack
               subPath: lightspeed-stack.yaml
             - mountPath: /tmp/data/feedback
               name: shared-storage
             - mountPath: /tmp/data/transcripts
               name: shared-storage
             - mountPath: /tmp/data/conversations
               name: shared-storage

8. Click Save and then Helm upgrade.

   1. Optional: Manage authorization (RBAC): If you have users who are not administrators, you must define permissions and roles for them to use Developer Lightspeed for RHDH. The Lightspeed Backend plugin uses Backstage RBAC for authorization.

      • For an Operator-installed RHDH instance:

9. Configure the required RBAC permission by defining an rbac-policies.csv file, including lightspeed.chat.read, lightspeed.chat.create, and lightspeed.chat.delete permissions:

   p, role:default/_<your_team>_, lightspeed.chat.read, read, allow
   p, role:default/_<your_team>_, lightspeed.chat.create, create, allow
   p, role:default/_<your_team>_, lightspeed.chat.delete, delete, allow
   g, user:default/_<your_user>_, role:default/_<your_team>_

10. Upload your rbac-policies.csv file to an rbac-policies ConfigMap in your OpenShift Container Platform project containing RHDH and update your Backstage CR:

    apiVersion: rhdh.redhat.com/v1alpha5
    kind: Backstage
    spec:
      application:
        extraFiles:
          mountPath: /opt/app-root/src
          configMaps:
            - name: rbac-policies

    • For a Helm-installed RHDH instance:

11. Configure the required RBAC permission by defining an rbac-policies.csv file:

    p, role:default/_<your_team>_, lightspeed.chat.read, read, allow
    p, role:default/_<your_team>_, lightspeed.chat.create, create, allow
    p, role:default/_<your_team>_, lightspeed.chat.delete, delete, allow
    g, user:default/_<your_user>_, role:default/_<your_team>_

12. Optional: Declare policy administrators by editing your custom RHDH ConfigMap (app-config.yaml) and adding the following code to enable selected authenticated users to configure RBAC policies through the REST API or Web UI:

      permission:
        enabled: true
        rbac:
          policies-csv-file: /opt/app-root/src/rbac-policies.csv
          policyFileReload: true
        admin:
          users:
            - name: user:default/<your_policy_administrator_name>

Verification

1. Log in to your RHDH instance.

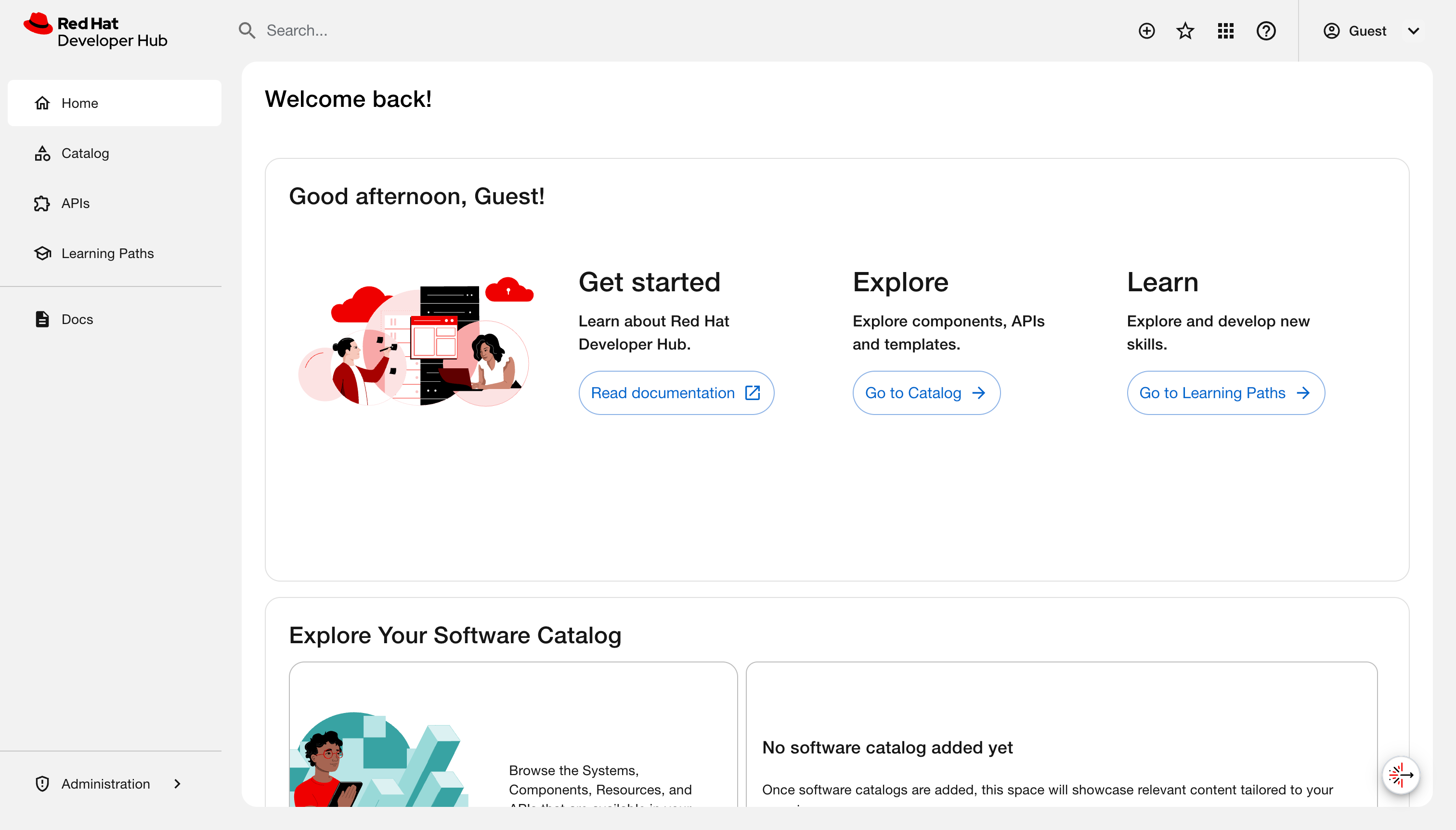

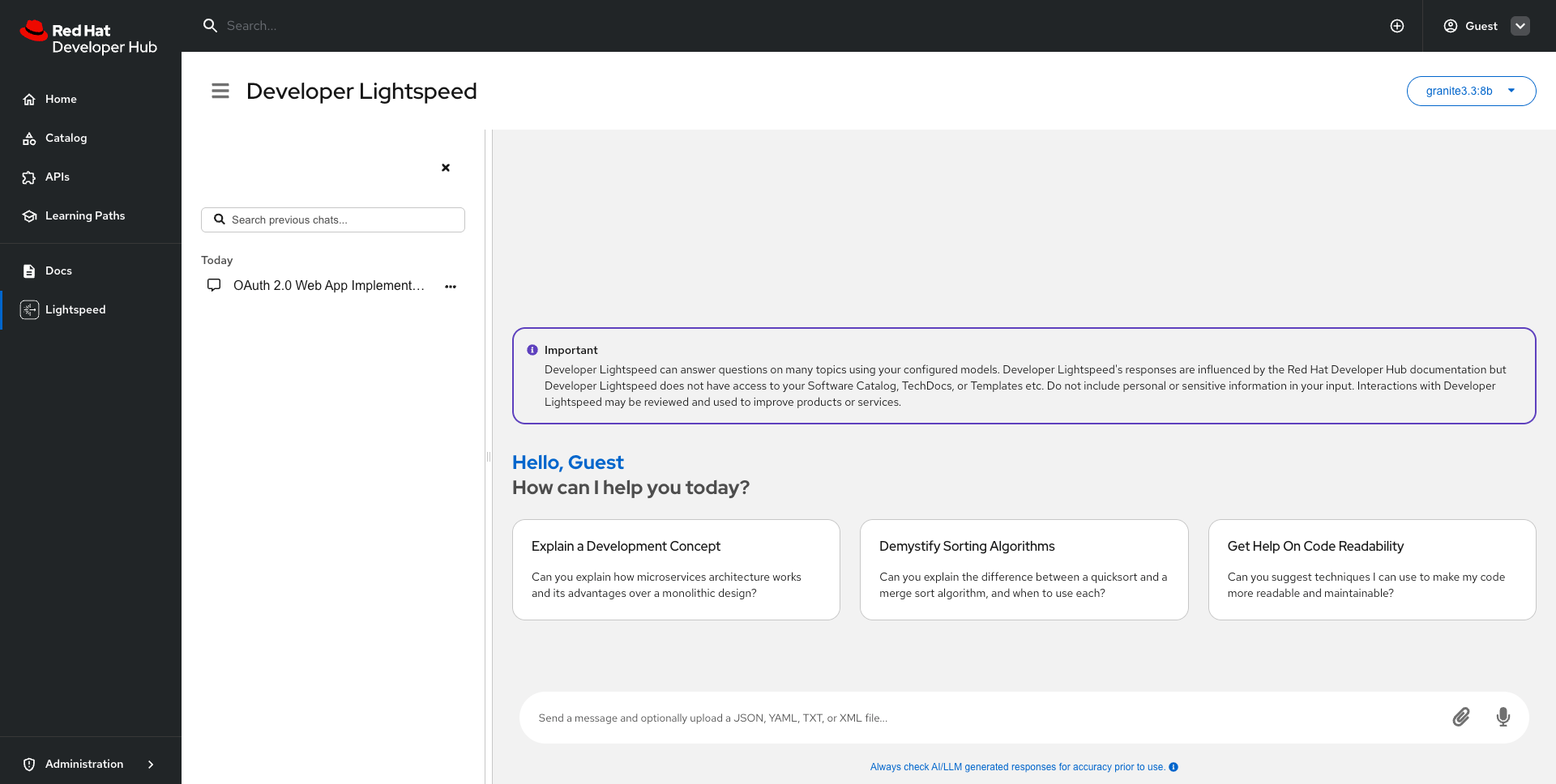

2. Verify that you can see and access the Lightspeed FAB in the home page.
3. Select the Lightspeed FAB and verify the chat screen loads.
